Published August 22, 2007
The only difference between these two motherboards is that the P35-DQ6 features the crazy cool heatsink on the back where as the P35-DS4 just has two smaller heatsinks. The P35-DQ6 utilizes a 12-phase power design whereas the P35-DS4 uses an eight-phase. The P35-DQ6 features a quad BIOS configuration whereas the P35-DS4 uses a dual BIOS. Finally, the P35-DQ6 costs around $40 more, so if none of these features are of any worth to you the P35-DS4 may be a better option for you.

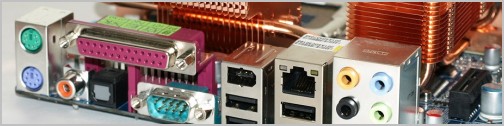

The Gigabyte P35-DQ6 features the Realtek ALC889A codec and DTS connect, featuring 106dB Signal to Noise ratio with support for both Blu-ray and HD DVD formats. The board boasts a single Gigabit LAN connection through the use of a Realtek RTL8111B controller which uses the PCI Express bus. The Texas Instruments TSB43AB22A Firewire controller is also included supporting two ports, one of which can be found at the I/O panel.

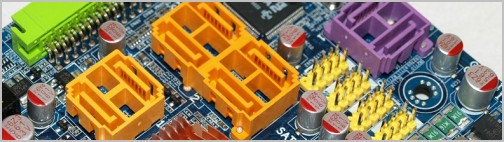

Interestingly Gigabyte has started re-labeling the JMicron JMB363 controller with Gigabyte SATA2. Again this JMicron controller supports two SATA ports which can be found on-board and a single IDE port. I prefer the way Gigabyte keep the extra SATA ports on-board rather than use them as eSATA ports at the I/O panel. Included are SATA brackets that can be used to connected eSATA storage if needed by the user. The P35-DQ6 uses the ICH9R southbridge chip and therefore offers another six SATA ports all capable of supporting RAID modes.
While the P35-DQ6 does appear to be an incredibly loaded motherboard its actually not as well stocked as the slightly more expensive ASUS P5K Deluxe motherboard. Nevertheless for $230 the P35-DQ6 is an exceptional product offering all the features most will ever need along with all the performance and overclocking capabilities anyone could ask for (more on that later).
