iFixit teardowns of the iPhone 7 and Apple Watch 2 show bigger batteries and Taptic Engines

By midian182
Sep 16, 2016
Post New Reply
  1. iFixit is putting Apple’s recently unveiled devices through its signature teardown process. The site is taking apart the iPhone 7, iPhone 7 Plus, and Apple Watch 2 to show some of internal changes Apple hasn’t talked about.

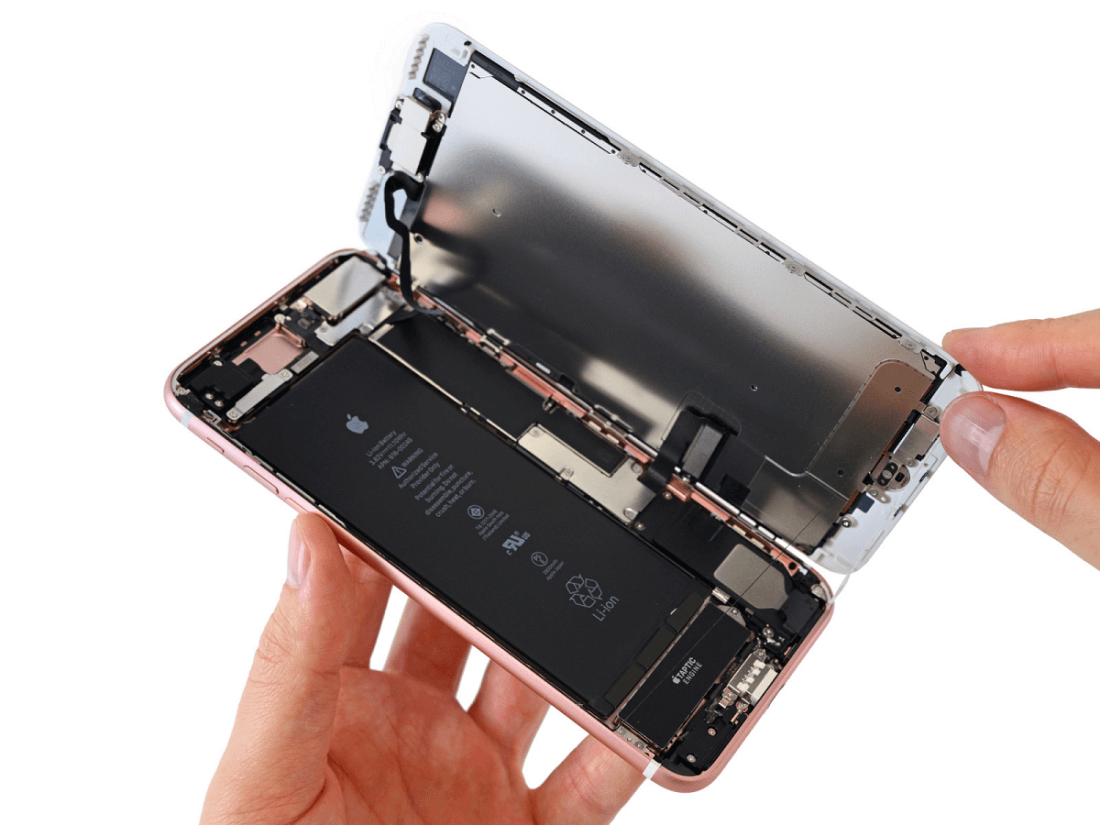

    In its iPhone 7 Plus teardown, the iFixit team noted that the smartphone now opens to its side rather than to the top. There’s also a sealing strip around the perimeter that’s “considerably stronger” than the one found in its predecessor – something that’s likely related to its waterproofing abilities.

    The most interesting aspect of the teardown relates to Apple’s removal of the 3.5mm headphone jack. Apple said that one of the main reasons it was abandoning the long-used connection was to make space for other technology and better features. The company appears to have made good on this promise; losing the jack means a bigger battery, a much bigger Taptic Engine, and (likely) better water resistance.

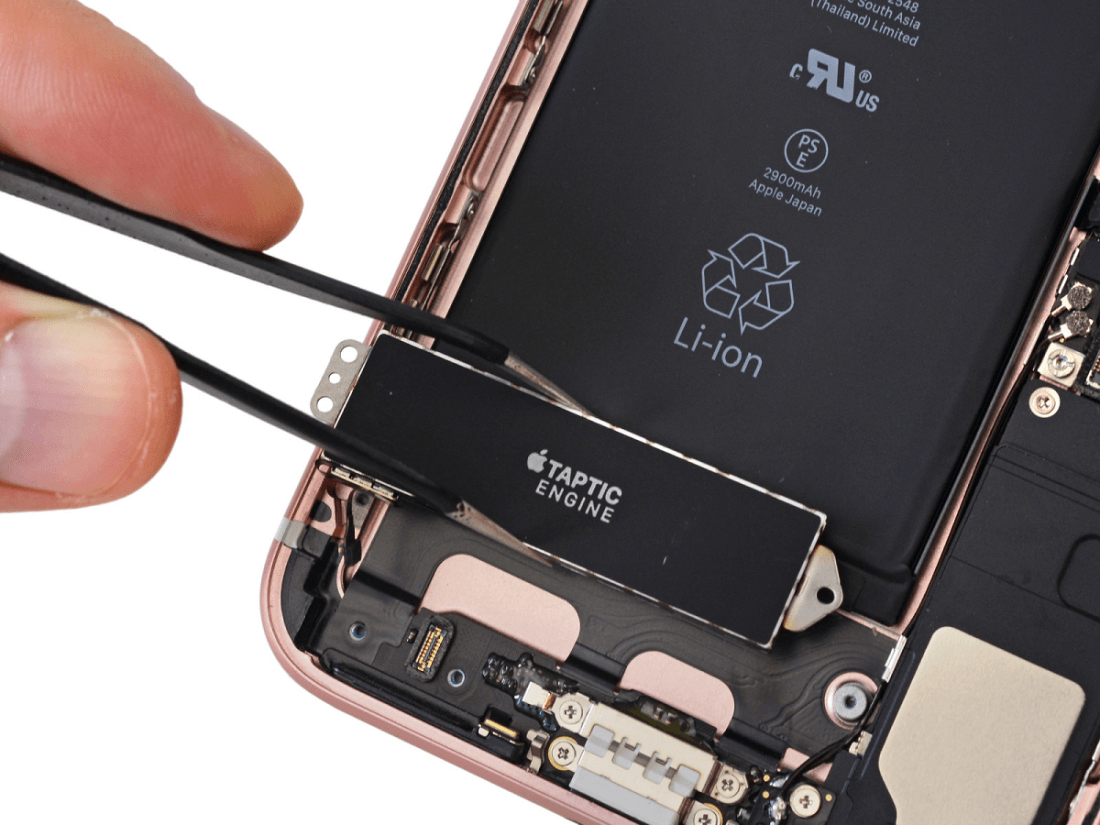

    It’s the Taptic Engine – the component that provides tactile sensations in the form of vibrations - that takes up most of the space left by the 3.5mm connection’s removal. Its size probably relates to the fact that the phone now uses vibrations to indicate that the Home button has been pressed

    The battery, meanwhile, has increased to 2900 mAh, a jump up from the 2750 mAh battery powering the iPhone 6s. This backs up Apple’s claim that the newer device lasts an hour longer.

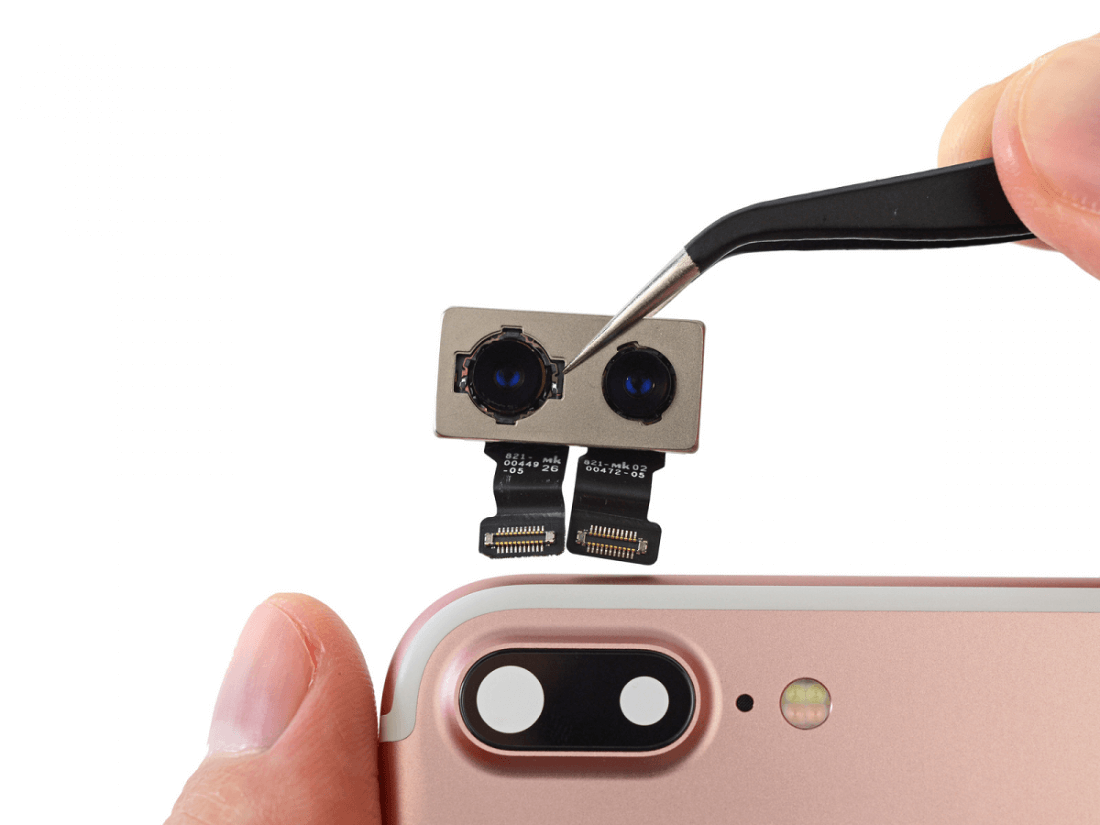

    The dual rear cameras are packed into a single module and, in the words of iFixit: “make it worth the bigger exterior camera bump—now built into the chassis in another suspected waterproofing/dust-fighting tactic.”

    With the Apple Watch Series 2, it seems that Apple has again gone with a larger battery. The teardown reveals a 273 mAh battery in the 38mm model - a 33 percent increase over the 205 mAh battery found in the original 38 mm Apple Watch. But this doesn’t indicate that the new watch will last longer than its predecessor; the added GPS feature and a brighter display means operating life is around the same length.

    Much like the iPhone 7 Plus, the Apple Watch 2 also features a larger Taptic Engine, as well as a much stronger adhesive sealant to improve its water resistance. A bigger metal shield has also been added next to the digital crown to improve waterproofing.

    The IFixit team hasn’t started the teardown of the smaller iPhone 7, but this will be arriving soon. And it's yet to give out repairability scores, as the teardowns are ongoing. Make sure to check them all out yourself at the iFixit site.

    Permalink to story.


  2. GreenNova343

    GreenNova343 TS Member Posts: 33   +18

    "The battery, meanwhile, has increased to 2900 mAh, a jump up from the 2750 mAh battery powering the iPhone 6s. This backs up Apple’s claim that the newer device lasts an hour longer."

    Wow, a whole 5% increase in the amount of energy stored in the battery. That's so amazing [/sarcasm].

    Maybe that'll translate to an extra hour of "light" usage...like reading a downloaded eBook, listening to songs stored on the iPhone, watching downloaded videos, & other similar uses. But once you start tapping your data (LTE or Wi-Fi), & especially once you start into "heavy" usage -- like games, GPS navigation, recording video/taking photos, or using the "flashlight" mode, that extra time isn't going to be measured in hours, it's going to shrink down to minutes...maybe 10 minutes for most, 5 minutes as a flashlight.

  3. jauffins

    jauffins TS Enthusiast Posts: 85   +24


    You got me. I use my $870 phone exclusively as a flashlight.

  4. VitalyT

    VitalyT Russ-Puss Posts: 3,149   +1,424

    The only good thing I can say about an iPhone 7 - it doesn't explode.

    theruck likes this.
  5. Phr3d

    Phr3d TS Booster Posts: 237   +42

    yet..

    (does pose the question about battery Size, though.. mebbe all us battery bitchers that thot Style was the reason for not offering obviously Available larger batteries in Flagship models were wrong - 4000mAh+ batteries can't be packaged -safely- on-the-super-cheap?)

  6. jauffins

    jauffins TS Enthusiast Posts: 85   +24

    Then you don't know much.

  7. Emexrulsier

    Emexrulsier TS Guru Posts: 508   +45

    True this model might not "explode". But from early reports they aren't without their own faults. One is the excessive coil whine. Many have probably heard coil whine from their gpus when playing certain games as the power draw increases. Very little you can do about it really but still it isn't something I would expect on a mobile phone, especially one like the iphone which have always had exceptional build quality.
