Tested: The Galaxy S7's always-on display consumes very little battery

By Scorpus
Mar 22, 2016
Post New Reply
  1. One of the Samsung Galaxy S7 Edge's great new features is the always-on display, which shows you the time, date, and select notifications even when the screen is 'off'. Being able to see the time at a glance is very handy, but many people have a misconception that enabling this feature consumes a lot of precious battery.

    Over the past few days I've been testing exactly how much battery the always-on display consumes, and the results aren't surprising: battery consumption is very low. This is due to the Galaxy S7 Edge's AMOLED display, which only needs to illuminate a handful of pixels to show the time and notifications. As the phone doesn't need to power a backlight to display this information, energy is conserved by keeping the vast majority of the display black (or off in this case).

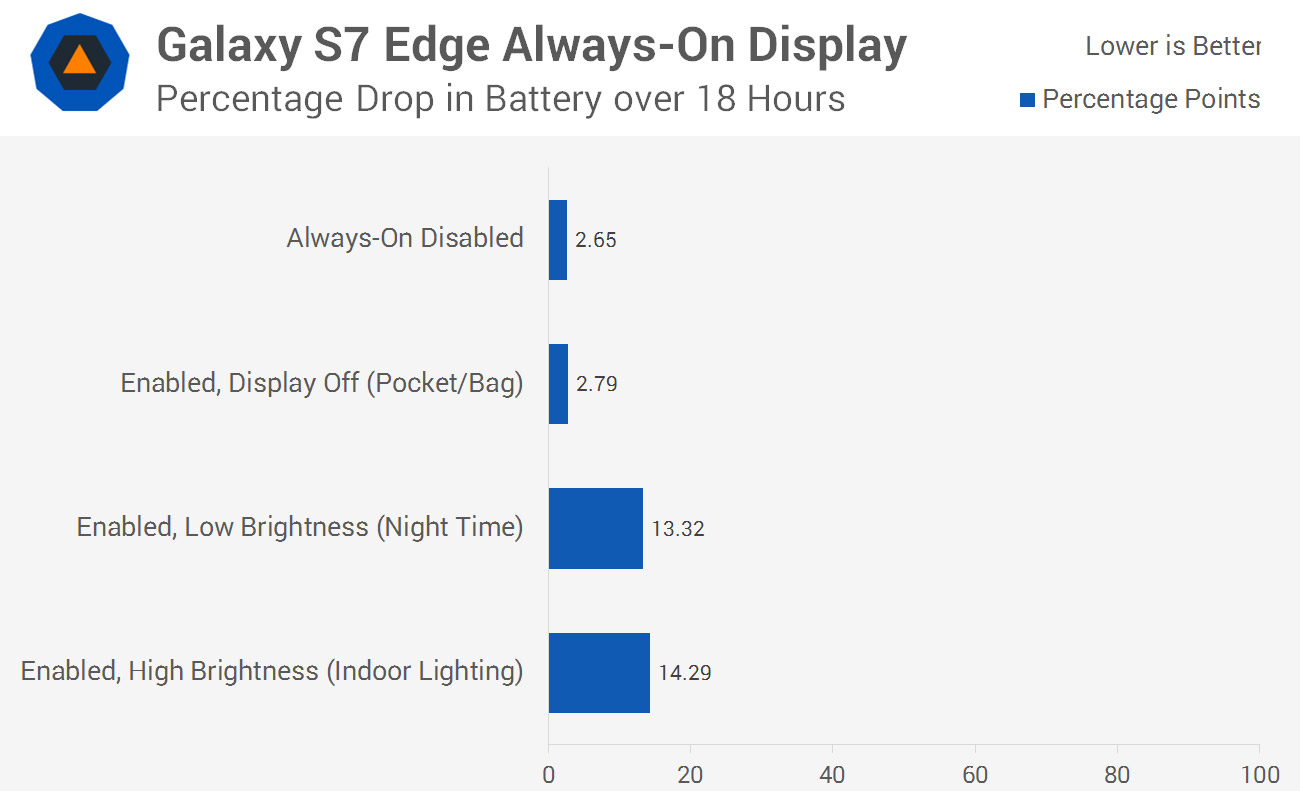

    To test the always-on display, I left the Galaxy S7 Edge in airplane mode over the course of 18 hours in a variety of conditions. I tested the phone without the feature enabled, and three times with the feature enabled: one for when the display was at a high brightness due to indoor lighting, one where the display was dim due to no lighting, and one where the display was off.

    Why would the display be off when the always-on feature is enabled? Well, Samsung's software engineers are clever, and turn off the display whenever the proximity sensor detects the phone is in your pocket or bag.

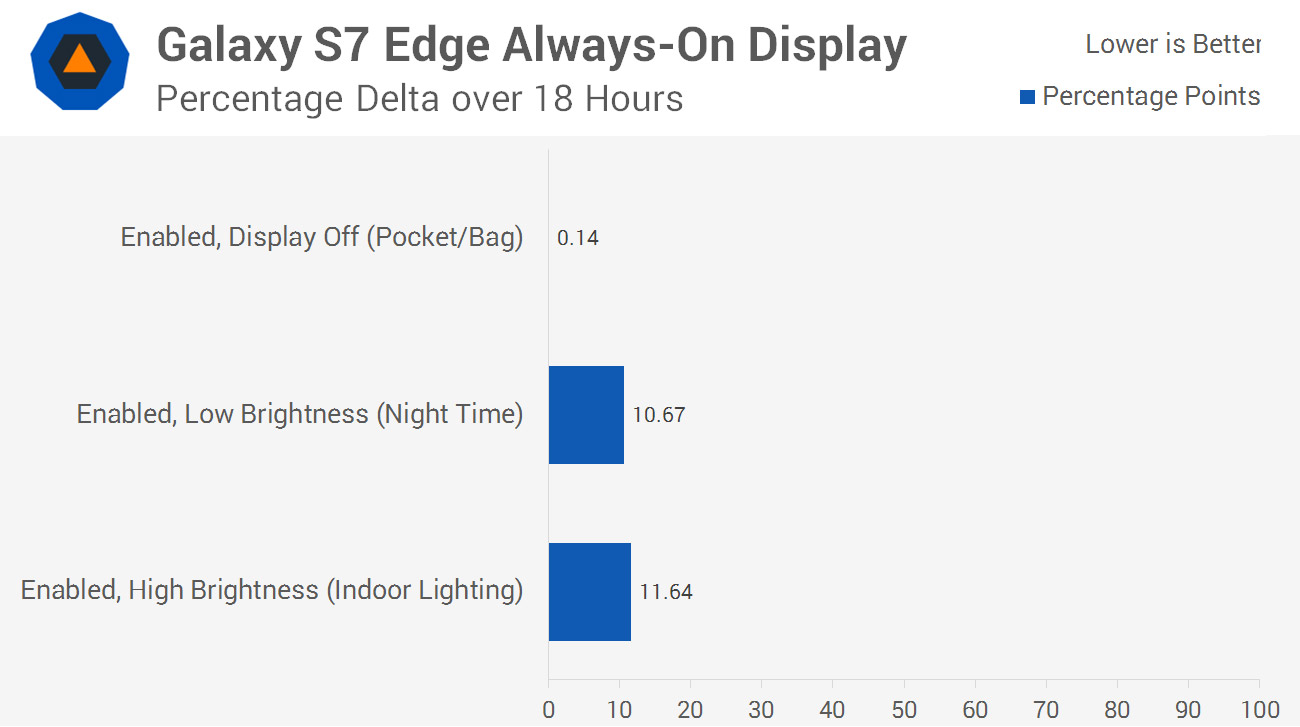

    In my tests I found that the always-on display consumed around 11 percent of the phone's battery over the course of 18 hours, relative to when the feature is disabled. If the phone was left to die, it would have taken a whopping 130 hours to deplete with the always-on display enabled, or five and a half days.

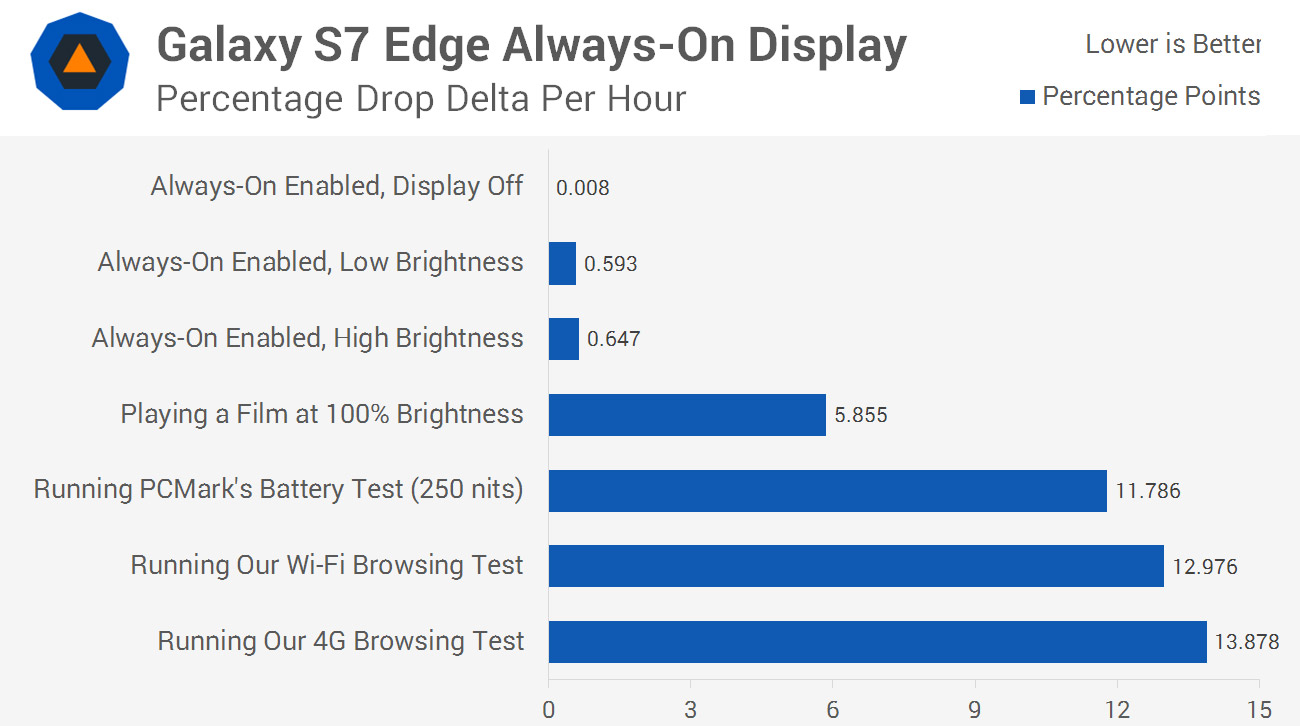

    When looking at how much battery is consumed per hour, the always-on display sucked between 0.59 and 0.65 percent of the battery per hour. If the phone is in your pocket and the always-on display is enabled, expect to lose 0.008 percent more per hour due to the power consumption of the proximity sensor.

    Compared to general usage, the impact from the always-on display is low. Running PCMark, for example, consumes 20 times more energy.

    To put a real world example to these figures, let's say you take the Galaxy S7 Edge off the charger at 6am, and return it to charge at 10pm. If you left the phone untouched with the always-on display enabled, you'd expect to lose an extra nine percent of battery over the course of the day.

    However that's a pretty unrealistic scenario, as most people actually use their phones throughout the day, and often keep them in a bag or pocket. Let's say that you use your phone for 40% of the day (5.6 hours of screen-on time) and for 30% the phone is in your pocket or bag. For another 30% of the day, the phone is on your desk displaying the time via the always-on display.

    In this scenario you can expect to consume an extra 2.75 percentage points of battery compared to if the always-on display is disabled. This is the difference between finishing the day with 30 percent battery remaining, and 27 percent battery remaining. In my eyes this is a very small amount, and perfectly justifies keeping the always-on display enabled.

    Permalink to story.


  2. hellokitty[hk]

    hellokitty[hk] Hello, nice to meet you! Posts: 3,435   +145

    Actually a very nice post, very practical and applicable.

  3. meric

    meric TS Enthusiast Posts: 62   +30

    Lol I don't believe they are advertising this as a special feature, even the lowest end windows phones have this for many years already

  4. Skidmarksdeluxe

    Skidmarksdeluxe TS Evangelist Posts: 6,514   +2,058

    Although all phones will have this feature in the very near future, it's something I won't pay any attention to. Hell, I don't even sleep with my phone close to me.

  5. H3llion

    H3llion TechSpot Paladin Posts: 1,260   +223

    A very useful feature. It saves seconds, and minutes in our lifetimes of pressing the button to check time. I really need to get a classic wrist watch...

  6. Skidmarksdeluxe

    Skidmarksdeluxe TS Evangelist Posts: 6,514   +2,058

    I can see it being handy for a lot of people, just like the IR blaster is but to me, they're pointless. Each to their own.

    NimbusTLD likes this.
  7. H3llion

    H3llion TechSpot Paladin Posts: 1,260   +223

    hey IR Blaster is not pointless when you can switch peoples TVs off while they are watching football at a pub! :D

    Skidmarksdeluxe, noel24 and NimbusTLD like this.
  8. treetops

    treetops TS Evangelist Posts: 1,953   +162

    I always wanted a basic mode with my cell phone that consumes less battery. Simply let me see the time, text and make calls. Like a secondary super light weight os.

  9. Darth Shiv

    Darth Shiv TS Evangelist Posts: 1,624   +378

    Well that was a good idea...now it's in a phone that people buy ;)

  10. Julio Franco

    Julio Franco TechSpot Editor Posts: 7,059   +646

    Regardless of battery life I turned off the always-on display feature on my Galaxy as I found it to be too distracting. I'm used to having a notification light in my phones, which is generally enough for me. However, I'm sure many others will find this useful once the software is open to support more than just calls and SMS (e.g. Whatsapp and other communication platforms that people use most).

    hahahanoobs and Darth Shiv like this.
  11. amghwk

    amghwk TS Enthusiast Posts: 65   +27

    The tech is fine. But the way it is written to glorify this latest offering sounds like a paid advertisement.

    Reminds me of favorable magazine game reviews of yesteryears.

  12. amghwk

    amghwk TS Enthusiast Posts: 65   +27

    And why should be always on?

    Why should it be always on when it's in my pocket?

    Why should it be always on when I'm driving?

    Why should it be always on when I'm eating?

    Why should it be always on when I'm sleeping?

    Why should it be always on when I'm attending a meeting?

    Am I going to look at the phone all the time?

    Then no need to wear a watch then?

  13. Skidmarksdeluxe

    Skidmarksdeluxe TS Evangelist Posts: 6,514   +2,058

    They're hip to that little trick now. I did that a while ago with my S4 while in a bank, their ads were annoying me. They've wised up now and the TV's have to be switched on/off physically. They've placed insulation tape over the IR receivers. Next time I'll take a long pole with me and switch them off at the wall. :D

    H3llion likes this.
  14. Sony's ultra stamina mode is like that.

    treetops likes this.
  15. Helmar

    Helmar TS Rookie

    It's not on when it's in your pocket, because:

    "Well, Samsung's software engineers are clever, and turn off the display whenever the proximity sensor detects the phone is in your pocket or bag."

    If you are distracted by the display, simply turn the phone upside down and the display will also go off.

  16. Morford1982

    Morford1982 TS Rookie

    One thing you forgot to account for in your test, all the times that I/we hit the power button in the day to look at the time, which does consume a lot of energy.
