This modded Game Boy features a color display, LiPo battery, extra buttons, modern ports and more

By Shawn Knight
Apr 7, 2016
Post New Reply
  1. For millions of gamers of a certain era, Nintendo’s Game Boy was the first handheld they owned. The chunky device offered impressive battery life (when used with quality AA batteries), an excellent collection of games and even local multiplayer with select titles.

    Technology advanced over the years and eventually, the classic Game Boy was succeeded by faster, smaller devices with better features. But for some, like YouTube modder wermy, there’s nothing quite like playing games on the familiar handheld.

    Using a Raspberry Pi Zero, wermy gutted a classic Game Boy to create what he calls the Game Boy Zero. Sure, others have used a Raspberry Pi to modernize Nintendo’s handheld but few (if any) offer the level of functionality and customization we see here.

    The YouTuber replaced the monochromatic display with a full-color unit, drilled a couple of extra holes on the face of the system for additional buttons (which were swiped from an original NES controller), replaced the link cable port with a USB port, added a micro USB port for charging, replaced the contrast dial with a mini HDMI port and even added rear “bumper” buttons.

    The original headphone jack was left alone and still disables the system’s speaker when headphones are connected.

    On the inside, wermy retrofit a 2,000mAh lithium polymer battery where the AA batteries would typically go. Behind that, you’ll find a USB hub with a Bluetooth dongle attached and a trio of small buttons to adjust the screen.

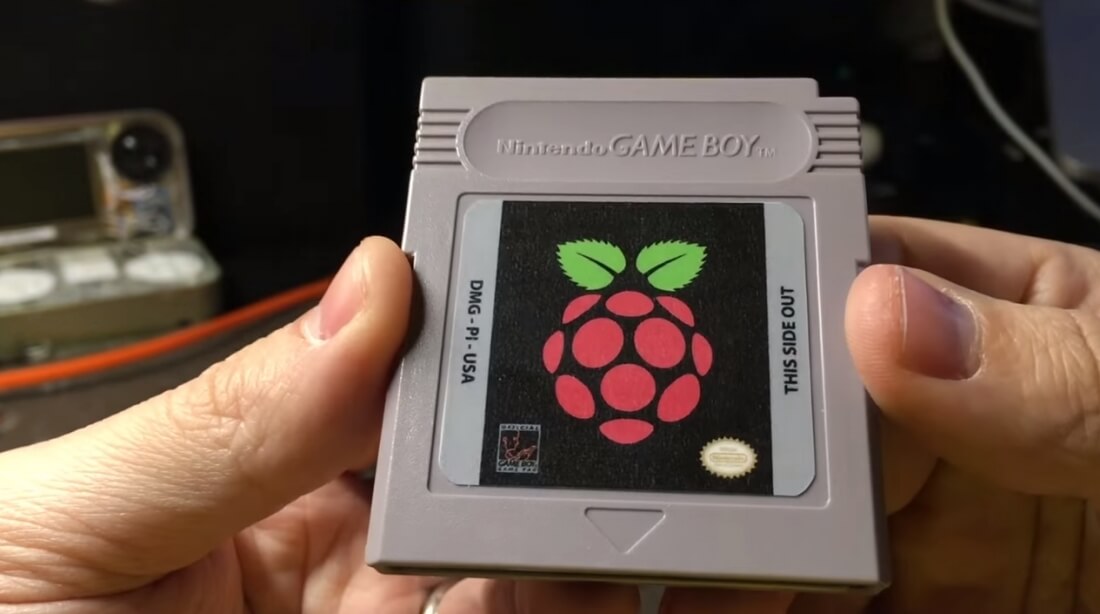

    The mods don’t stop there, however, as he took apart a standard game cartridge and wired up an SD-to-microSD card adapter. The cartridge reader from the Game Boy was then wired up to the SD card pads on the Raspberry Pi. Having done that, he can insert a microSD card into the modded game cartridge and plug that into the Game Boy just as you would with a standard game on a stock unit.

    The system runs RetroPie and by using Emulationstation, he can play a wide range of games. Nicely done!

    Permalink to story.


  2. madboyv1

    madboyv1 TechSpot Paladin Posts: 1,333   +267

    Is anyone else disappointed that when he turned on the gameboy he did not make some custom start screen with the Raspberry Pi Emblem and the classic Gameboy load sound when it initially loads the firmware?

    Either way very impressive and ingenious way to use some of the original hardware.

  3. Camikazi

    Camikazi TS Maniac Posts: 817   +231

    I want one now, or instructions on how to make one :p

  4. Squid Surprise

    Squid Surprise TS Guru Posts: 863   +276

    I still have my Gameboy... tempted to get it out and play some tetris :)

  5. Arris

    Arris TS Evangelist Posts: 4,606   +287

    Just in time just as Nintendo start releasing stuff for smartphones...
