Zotac unveils featured packed A75-based Mini-ITX board

By

On September 23, 2011, 8:30 AM EST

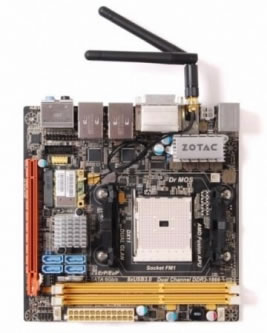

In perfect synchronicity with Lian Li's new LAN party chassis, Zotac has unveiled its latest Mini-ITX motherboard. Meant to provide the foundation for compact multimedia rigs, the new A75-ITX features AMD's codenamed Hudson-D3 chipset along with the company's new FM1 socket. The platform supports AMD's latest Fusion APUs, including the E2, A4, A6 and flagship A8 series chips, which offer the best integrated graphics performance available today.

If the on-die Radeon chip doesn't cut it, the board offers one full-speed PCI Express x16 expansion slot for a discrete graphics card. You'll also find support for two DDR3 1866MHz RAM modules and up to four SATA 6Gb/s devices with RAID 0, 1 and 0+1 functionality. That's two less SATA 6Gb/s ports than A75 supports natively, but you can only fit so many connectors on a Mini-ITX board and Zotac has certainly augmented the Hudson-D3 with third-party controllers.

There's support for eight USB 3.0 ports (two via header) as well as dual-gigabit Ethernet -- twice as much as the A75 can handle on its own. Other connectivity includes two USB 2.0 ports (via header), eight-channel audio including digital SPDIF and HDMI audio outputs, DVI and HDMI video outputs (a VGA adapter is supplied), as well as 802.11n Wi-Fi and Bluetooth 3.0. Pricing and availability are unknown. For whatever it's worth, Asrock offers an A75 Mini-ITX board for $90, but it has less features (half the USB 3.0/Ethernet ports and no DVI, Wi-Fi or Bluetooth).

, , , , ,

User Comments (4)

Post a comment
captainawesome
on September 23, 2011
6:31 PM

Some quality HTPC's can come out of this little package!

Reply

SammyJames
on September 23, 2011
7:40 PM

captainawesome said:

Some quality HTPC's can come out of this little package!

Heck yeah. One could even build a powerful mobile music-production rig with a board like this. I'll consider it after I've built my monster studio-grade DAW computer this autumn.

- S

Reply

madboyv1
on September 23, 2011
8:26 PM

From my experience, whatever Zotac uses for it's internal USB/mini-PCIe wifi cards, they aren't doing it right (bad cards, cruddy reception even with better antennae) and Zotac also has a habit of overloading USB onto these boards to the point of actual failure. That being said I have the old LGA 775 GF 9300 ITX board that I use for a smaller server/multimedia box and I love it. At the same time, glad to see Zotac FINALLY giving some wholesome love to the AMD platform.=p

Reply

spydercanopus
on September 24, 2011
3:54 PM

Would this provide the same performance as a large form factor board? It's only cut corner is upgradability and has full performance?

Reply
