Toshiba announces 96-layer QLC 3D NAND chips to boost SSD capacities

Shawn Knight

Posts: 15,240   +192
Staff member
Why it matters: SSDs are a dime a dozen these days. Any meaningful step forward is going to come as a result of either increased performance or increased capacity. Toshiba's latest advancement addresses the latter (and hopefully, not at the expense of the former).

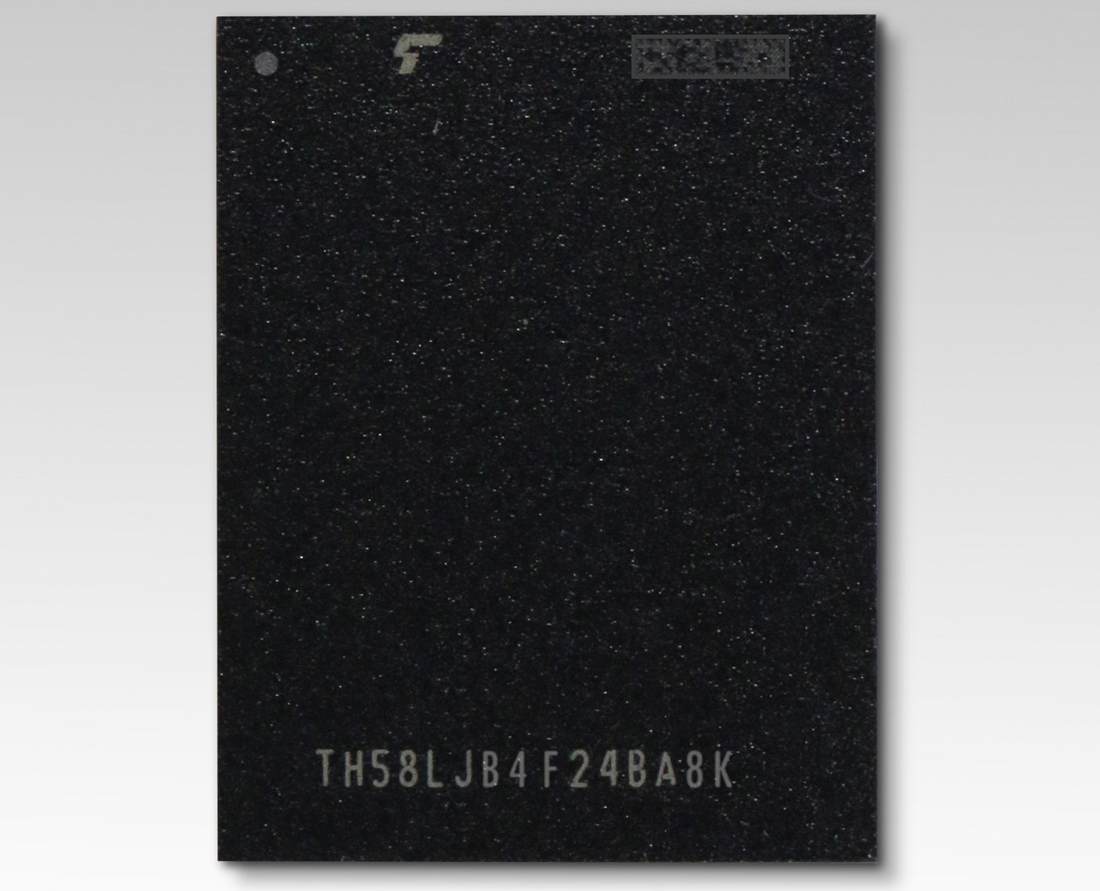

Toshiba recently announced the development of a prototype flash memory chip that boosts single-chip memory capacity to the industry’s highest level.

The 96-layer BiCS 3D NAND chips feature four bits per cell (quad level cell, or QLC). By pushing the bit count for data per memory cell from three to four, Toshiba’s new NAND achieves a maximum capacity of 1.33 terabits for a single chip. A typical 16-die stacked architecture in a single package would have a capacity of 2.66 terabytes, opening the door for large-capacity SSDs in the not-too-distant future.

Scott Nelson, senior vice president of TMA’s memory business unit, said they were among the first in the industry to envision and prepare for the successful migration of SLC technology to MLC, from MLC to TLC and now, from TLC to QLC. It has made increasingly dense packaging options available, he said, adding that QLC will have a game-changing impact across many different markets.

Toshiba said samples will begin shipping to SSD and SSD controller vendors in early September with mass production expected to begin in 2019. Western Digital, a partner of Toshiba, said in a separate release that it is now sampling the new NAND and plans to ship consumer products running the chips under the SanDisk brand later this year.

Permalink to story.


Is this still for the 2.5" inch size?

If they had done this in the standard 3.5" size, we could have had this years ago... Anyone know why they are not building them in 3.5"?

Is this still for the 2.5" inch size?

If they had done this in the standard 3.5" size, we could have had this years ago... Anyone know why they are not building them in 3.5"?

Size isn't an issue for an SSD. There is no point in making a 2TB 3.5" SSD because they fit in the 2.5" form factor just fine. Increasing the size of the SSD won't help anything because in order to fill it, the cost would still be the same as a 2.5" version. Maybe even a little more because the cost of the enclosure would go up.

Is this still for the 2.5" inch size?

If they had done this in the standard 3.5" size, we could have had this years ago... Anyone know why they are not building them in 3.5"?

Size isn't an issue for an SSD. There is no point in making a 2TB 3.5" SSD because they fit in the 2.5" form factor just fine. Increasing the size of the SSD won't help anything because in order to fill it, the cost would still be the same as a 2.5" version. Maybe even a little more because the cost of the enclosure would go up.
I'm not sure but the quoted post might have been suggesting that manufacturers could have been making 3.5" SSDs that could use the extra volume to cram more chips onto a larger PCB, or even two boards in a single enclosure and link them together.

But that's just my guess.

I'm not sure but the quoted post might have been suggesting that manufacturers could have been making 3.5" SSDs that could use the extra volume to cram more chips onto a larger PCB, or even two boards in a single enclosure and link them together.

But that's just my guess.

Zero point in that. It would cost the same or more than 2.5" drives. You'd end up with a drive that takes up more physical space and costs more at the same capacity. Like I said, volume isn't the issue for SSDs. You can fit a ton of chips in a small space.

Zero point in that. It would cost the same or more than 2.5" drives. You'd end up with a drive that takes up more physical space and costs more at the same capacity. Like I said, volume isn't the issue for SSDs. You can fit a ton of chips in a small space.
Well I know that, I've opened up SSDs before, some with large chunks of empty PCB real estate, and/or PCBs that only take half of the space of the SSD enclosure. But if money was no concern I imagine there would be nothing stopping a manufacturer from putting as memory chips as the controller allows (if there is such a limit) into whatever enclosure they want, regardless if it made sense. As in making "large-capacity SSDs". I think that was he was after.

This actually did happen "recently" when Seagate made a 60TB drive in the 3.5" form factor in 2016, but afaik it never went on sale, unlike the 15TB/30TB drives samsung made which are in the 2.5" form factor. This new QLC will enable manufactures to continue using the 2.5" form factor and even m.2 for more and more storage dense drives, which I'm totally fine with. *thumbs up*

Well I know that, I've opened up SSDs before, some with large chunks of empty PCB real estate, and/or PCBs that only take half of the space of the SSD enclosure. But if money was no concern I imagine there would be nothing stopping a manufacturer from putting as memory chips as the controller allows (if there is such a limit) into whatever enclosure they want, regardless if it made sense. As in making "large-capacity SSDs". I think that was he was after.

This actually did happen "recently" when Seagate made a 60TB drive in the 3.5" form factor in 2016, but afaik it never went on sale, unlike the 15TB/30TB drives samsung made which are in the 2.5" form factor. This new QLC will enable manufactures to continue using the 2.5" form factor and even m.2 for more and more storage dense drives, which I'm totally fine with. *thumbs up*

Oh yeah, they could make massive drives in the 3.5" form factor if they wanted to if cost wasn't a factor.

As you mentioned though, the controller will be the bottleneck. You would either have to partition multiple smaller drives together or develop a controller capable of handling an SSD of that size.

Can anyone calculate what that is in GB's per chip?

"Toshiba’s new NAND achieves a maximum capacity of 1.33 terabits for a single chip."

eight bits per byte
one terabyte equals 1000 gigabytes
labeling is not in binary so we don't multiply/divide by 1024

1.33 terabits max per chip would dictate 166 gigabytes per chip.

I can see 3.5 " drives are good for the desktop and server,while 2.5 " can fit the Desktop,the server,the laptop, the NUC ,Tablets and many other devices that require storage.the ssd is quite thin with out a housing..
