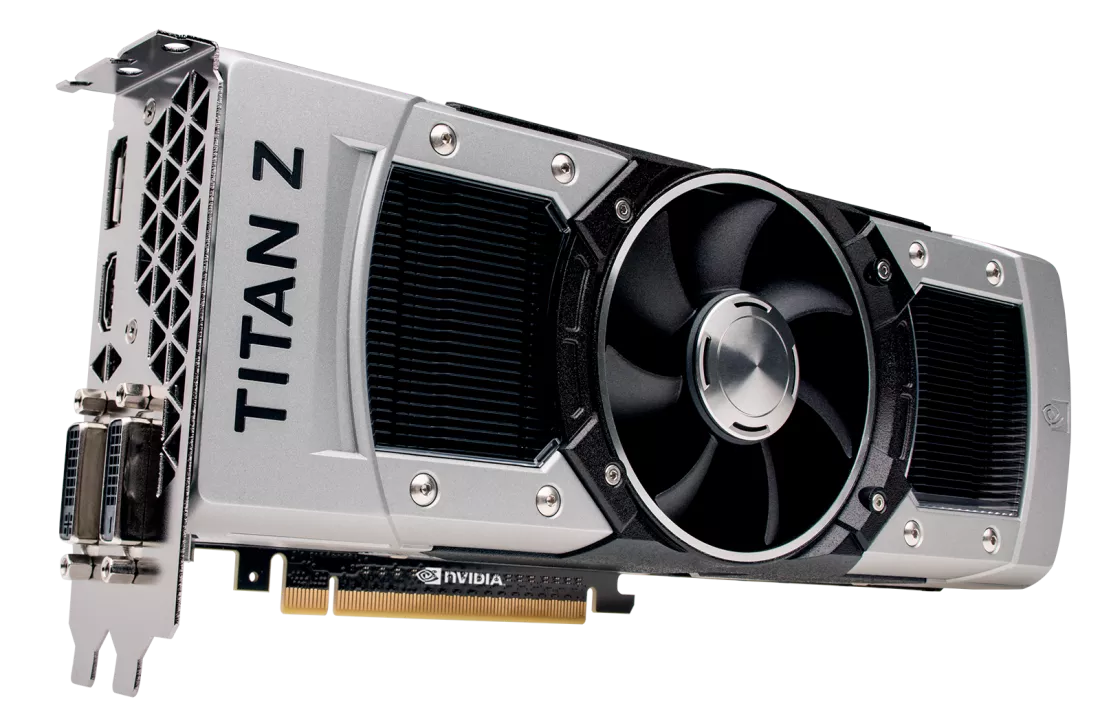

Nvidia GeForce GTX Titan Z
| GPU Snapshot | |||
| Release date: | Mar 28, 2014 | Price at Launch: | $2,999 |
| Type: | Desktop | Architecture: | Kepler |
| Generation: | GTX 700 series | Product Tier: | High-end |
| VRAM Capacity: | 12 GB | Total Board Power: | 375 W |
| Core Configuration | |||
| Shader Cores: | 5760 | TMUs: | 480 |
| ROPs: | 96 | L2 Cache: | 3 MB |
| Memory | |||
| VRAM Capacity: | 12 GB | Memory Type: | GDDR5 |
| Memory Speed: | 7 Gbps | Memory Bus: | 768-bit |
| Bandwidth: | 672 GB/s | ||
| Graphics Processing | |||
| Base Clock: | 705 MHz | Boost Clock: | 876 MHz |
| FP32 Throughput: | 10 TFLOPs | Ray Tracing: | No |
| Process Size: | 28nm | Process Name: | TSMC 28nm |
| Die Size: | 561 mm² | ||
| Power & Connectivity | |||
| Total Board Power: | 375 W | Power Connectors: | 2x 8-pin |
| Bus Interface: | PCIe 3.0 x16 | HDMI Support: | HDMI 1.4a |
| DisplayPort Support: | DP 1.2 | DSC: | No |
| Max Displays: | 4 | ||
| Media & Software Support | |||
| DirectX Support: | 12 | Shader Model: | 6.5 |
| Vulkan Version: | 1.2 | OpenGL Version: | 4.6 |
Price History
Nvidia GeForce GTX Titan Z pricing
| Price | Date | |
| Current | $695 | Jul 10, 2026 |
| Highest* | $695 | Jun 8, 2026 |
| Lowest* | $689 | Jan 30, 2026 |
| Average | $691 | |
TechSpot is supported by its audience. We may earn a commission when you buy through links on our site. Learn more here.
Reviews and Ratings
User Score
Based on 14 reviews
I knew in advance that the conclusion page would be a difficult one to write. I tried to find some sort of euphemism or analogy if you will to word the sentiment that is the GeForce GTX Titan Z. I ended up with Seinfeld. In fact, if you have noticed the...
By Guru of 3D onReview of the GeForce GTX Titan-Z. The card is much talked about as Nvidia introduced the product at prices that are insane, and then they refused to send out samples towards the media. To th... Read more...
By DigitalReviews onLet's begin on a positive note. When you don't care about spending a grand more or less, Tones uses their TIZAir system to prove that you can construct a very special high-end system with a basis of two Titan-Z cards. More importantly, the system once...
By uk.hardware.info onTo be fair, we kind of knew how the GeForce GTX Titan Z was going to fare before going into this review, but it is something that needed to be tested and confirmed with hardware for our readers and fans. I think the results fall in line with those...
By PCPer onWe first talked about NVIDIA’s TITAN Z back when it was unveiled during the GPU Technology Conference in March. Since then, additional details have been non-existent but it goes without saying that during the last two months tweaking and no small amount...
By Hardware Canucks onLes fabricants de cartes graphiques possèdent à leur catalogue des produits pour tous les types d'utilisation et surtout tous les portefeuilles possibles. Segmentant d'une certaine façon leur offre, NVIDIA et AMD proposent bien entendu des modèles haut...
By tomshardware.fr
on
NVIDIA and I were at odds about this review from the very beginning. Frankly, their decision to avoid negative press by bypassing reviewers didn’t sit well at all. So I went at this review with a pitchfork, torch and angry mob mentality, figuring I would...
By Hardware Canucks on
