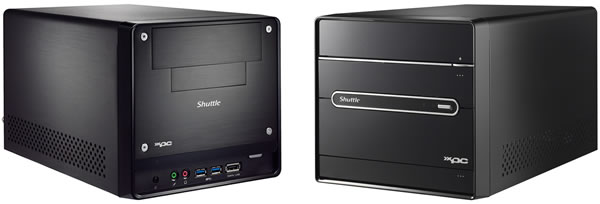

Besides the varying front panel designs, the machines appear to have identical specification sheets. Both ship with an H67 motherboard that supports Core i3, i5 and i7 with a TDP of up to 95W -- though a processor isn't included. The board also features four slots for DDR3 RAM, one PCIe x16 and x1 slot, a Mini-PCIe x1 slot for an optional WLAN module, as well as two internal SATA 2.0 (3Gb/s) and 3.0 (6Gb/s) ports.
The rear panel features an eSATA 2.0 port, HDMI 1.4a and DVI-I outputs, four USB 2.0 and two USB 3.0 ports, gigabit Ethernet, eight-channel audio, optical S/PDIF, an optional RS-232 Serial connector, and a clear CMOS button. Meanwhile, the front carries audio jacks, two USB 3.0 ports, an eSATA/USB 2.0 combo, along with one external 5.25 and 3.5-inch drive bay (there's room for a single 3.5-inch storage drive inside).
Shuttle notes that the PCIe x16 slot can accommodate dual-slot graphics cards if the IGP isn't powerful enough, but both machines come with a 300W power supply with one six-pin connector so your options are limited. Other noteworthy features include preinstalled power and data cables, and Shuttle's "I.C.E. heatpipe" CPU cooler. The SH67H3 and SH67H7 are due to launch in Europe next month for €239 and €251.
