Non-K Intel Alder Lake CPU specs confirmed by Asus and Colorful

[mongeese]

In brief: Intel is expected to reveal the non-K versions of Alder Lake (12th-gen Core) at CES on Tuesday, but Asus and Colorful have confirmed some of their specifications in advance. Some models are a bit disappointing, while others are compelling options for the non-overclockers out there.

It’s not uncommon for motherboard vendors to include unreleased processors in their lists of supported hardware, which is what’s happened here.

In the tables below, we have core counts, base clocks, and TDPs from Asus and Colorful, and the boost clocks from leaked marketing materials and prematurely published product pages. Not included in the tables are the leaked prices from Best Buy, but you can look at those here.

	i9-12900/F*	i9-12900T	i7-12700/F	i7-12700T
P-Cores	8/16		8/16
E-Cores	8/8		4/4
Boost Clock	5.1 GHz	?	4.9 GHz	?
Base Clock	2.4 GHz	1.4 GHz	2.1 GHz	1.4 GHz
TDP	65 W	35 W	65 W	35 W

*There are both vanilla and "F" versions of this processor and they share their specs.

According to Asus, Alder Lake uses two steppings: C-0 and H-0. Both the i9 and i7 families use the C-0 stepping, which has eight performance and eight efficiency cores. The H-0 stepping has six performance cores and no efficiency cores.

	i5-12600	i5-12600T	i5-12500	i5-12500T	i5-12400/F	i5-12400T
P-Cores	6/12		6/12		6/12
Boost Clock	4.8 GHz	?	4.6 GHz	?	4.4 GHz	?
Base Clock	3.3 GHz	2.1 GHz	3.0 GHz	2.0 GHz	2.5 GHz	1.8 GHz
TDP	65 W	35 W	65 W	35 W	65 W	35 W

Intel separates the two steppings at the junction between the 12600K, which uses the C-0 stepping, and the 12600 (non-K), which uses the H-0 stepping. Because of this, the 12600K has four efficiency cores that the non-K doesn’t have.

All of the non-K i5 and i3 processors use the H-0 stepping.

	i3-12300	i3-12300T	i3-12100/F	i3-12100T
P-Cores	4/8		4/8
Boost Clock	?	?	4.3 GHz	?
Base Clock	3.5GHz	2.3 GHz	3.3 GHz	2.2 GHz
TDP	60 W	35 W	60/58* W	35 W

*This is the only "F" processor to have a lower TDP than its vanilla counterpart.

It might’ve made sense for entry-level parts to use efficiency cores. But, because the H-0 stepping has none, they’re stuck with hungry performance cores.

Intel will announce these processors in a few days, and we’ll be benchmarking them and drawing conclusions soon. But in the present, they seem like a worthy addition to the Alder Lake generation, which is all that we can ask for.

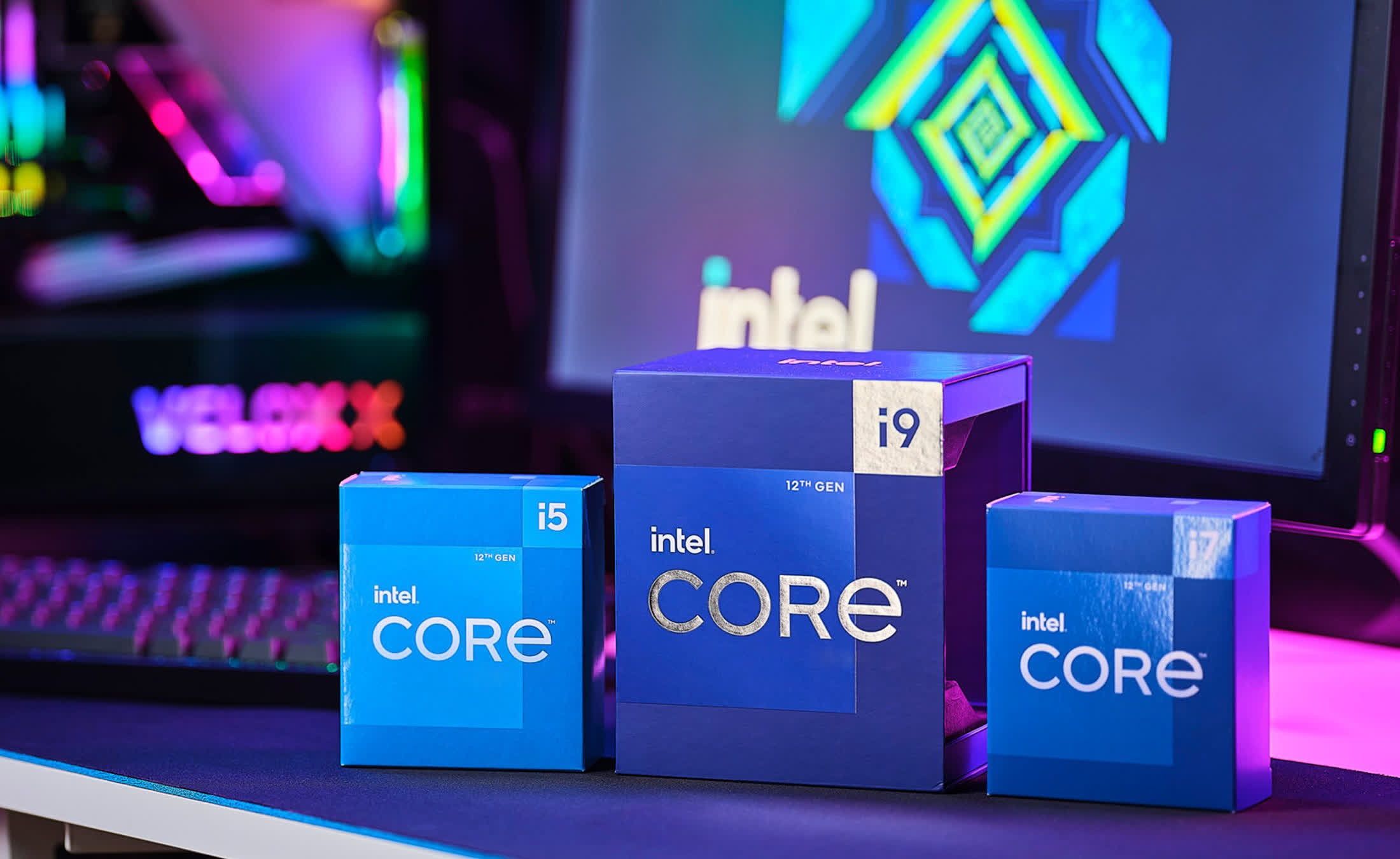

Image credit: Niclas Illg

Permalink to story.

https://www.techspot.com/news/92817-asus-colorful-confirm-specs-non-k-alder-lake.html



[hahahanoobs]

"It might’ve made sense for entry-level parts to use efficiency cores. But, because the H-0 stepping has none, they’re stuck with hungry performance cores."

Doubt it. The 6 core non-E-core parts are already rumoured to use the same or less power than the 5600X and just as fast. Plus E-cores would increase cost. Maybe next gen we'll see em, but performance and power-wise it makes no sense to do it now.



[pcnthuziast]

The T versions would be great for a mini itx build and be enough to adequately feed at least up to a 3070 I bet.



[Vulcanproject]

Bring on the 12400 and cheap motherboards. Let's see what these cheaper babies can do versus older more expensive parts, particularly in games. I smell a budget gaming champion arriving.



[Theinsanegamer]

"It might’ve made sense for entry-level parts to use efficiency cores. But, because the H-0 stepping has none, they’re stuck with hungry performance cores."

Doubt it. The 6 core non-E-core parts are already rumoured to use the same or less power than the 5600X and just as fast. Plus E-cores would increase cost. Maybe next gen we'll see em, but performance and power-wise it makes no sense to do it now.

The E cores are nothing but e-peen to get ahead of AMD's 16 core 5950x.



[hahahanoobs]

The E cores are nothing but e-peen to get ahead of AMD's 16 core 5950x.

It worked!

11th hour rumour:
AMD Ryzen 7000 'Raphael' CPUs To Feature A Mix of 5nm Zen 4 'Priority' & 'Low TDP' cores

We'll know if it's true tomorrow night at AMD's keynote.
