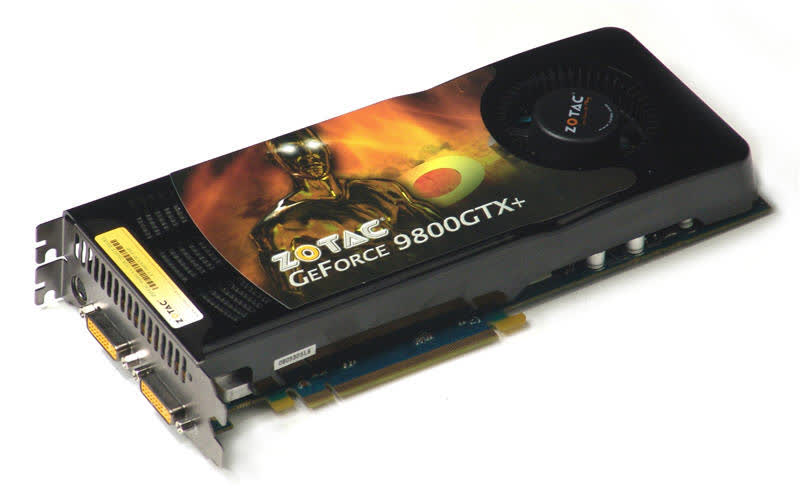

Nvidia GeForce 9800 GTX+
Tesla
Architecture
High-end
Product Tier
128
Shader Cores
16
ROPs
64
TMUs
No RT
Ray Tracing
GDDR3
Memory Type
70.4 GB/s
Bandwidth
141 W
TDP
| GPU Snapshot | |||
| Release date: | Jan 16, 2009 | Price at Launch: | $229 |
| Type: | Desktop | Architecture: | Tesla |
| Generation: | GeForce 9 series | Product Tier: | High-end |
| Total Board Power: | 141 W | ||
| Core Configuration | |||
| Shader Cores: | 128 | TMUs: | 64 |
| ROPs: | 16 | L2 Cache: | 64 KB |
| Memory | |||
| Memory Type: | GDDR3 | Memory Speed: | 2.2 Gbps |
| Memory Bus: | 256-bit | Bandwidth: | 70.4 TB/s |
| Graphics Processing | |||
| Base Clock: | 738 MHz | FP32 Throughput: | 0.470 TFLOPs |
| Ray Tracing: | No | Process Size: | 55nm |
| Process Name: | TSMC 55nm | Die Size: | 260 mm² |
| Power & Connectivity | |||
| Total Board Power: | 141 W | Power Connectors: | 2x 6-pin |
| Bus Interface: | PCIe 2.0 x16 | DSC: | No |
| Max Displays: | 2 | ||
| Media & Software Support | |||
| DirectX Support: | 11.1 | Shader Model: | 4.0 |
| OpenGL Version: | 3.3 | ||
