AMD announces Epyc 9004: up to 96 cores for around $12,000

[mongeese]

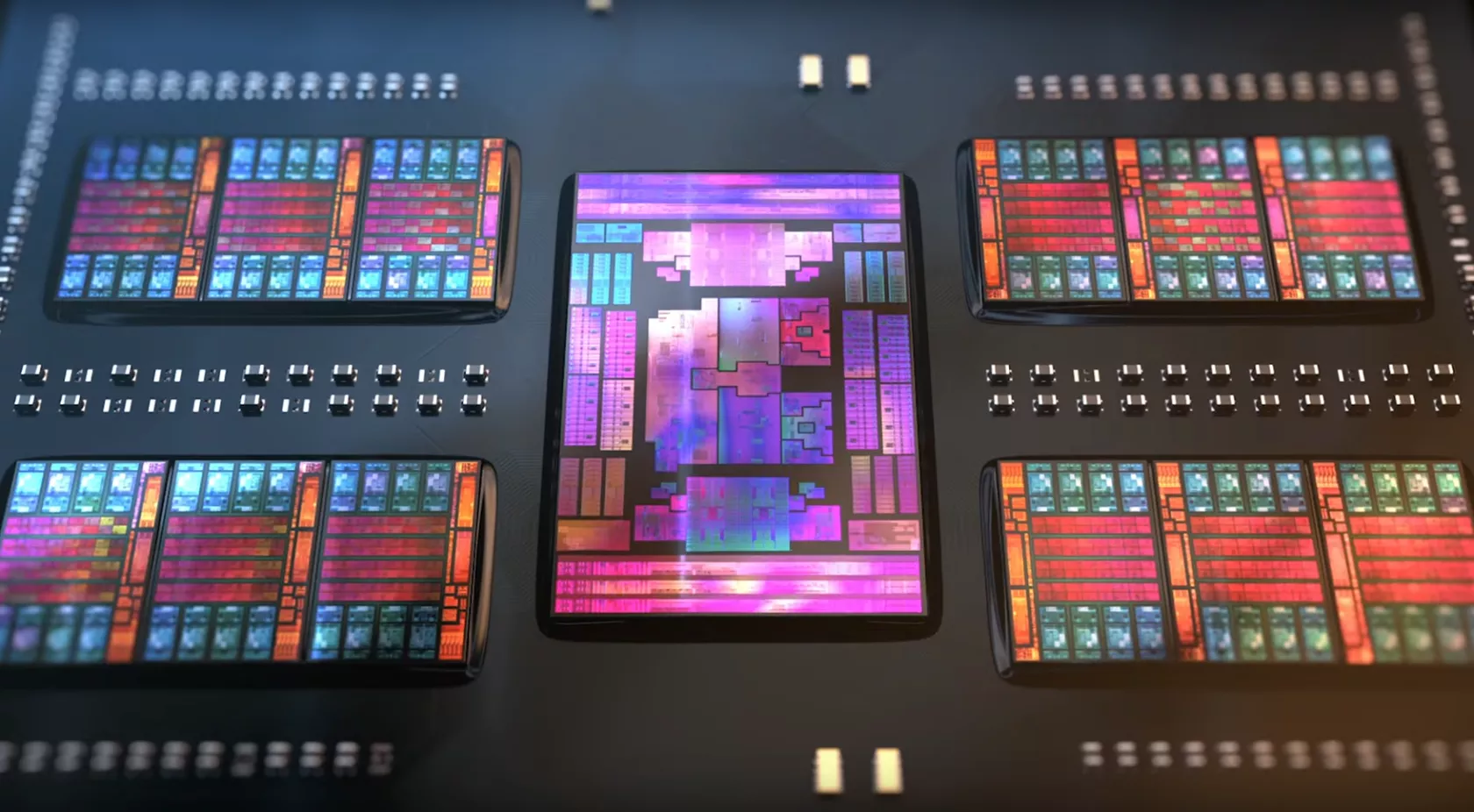

In context: AMD took the audience on a roller coaster ride as it unveiled the fourth generation of Epyc data center processors at a live event last week. The presenters hurled number after number at the audience the whole way through, so buckle up as we break them down.

We should start with the name of the series: 9004, following on from 7003, 7002, and 7001. Why the nine? Not sure, but the trailing four is a reference to both the generation and the architecture, Zen 4. The codename for the series is/was Genoa, continuing AMD's tradition of naming Epyc series after Italian cities, which in the past has included Milan, Rome, and Naples.

AMD has also developed an affinity for the number five. Eight channels of DDR4 have become twelve channels of DDR5-4800 (for up to 6 TB per socket), and 128 lanes of PCIe 4.0 have given way to 128 lanes of PCIe 5.0 and 64 lanes of CXL 1.1+. The series also switches from TSMC 7nm to 5nm and adopts a new socket, called SP5 (LGA 6096). And lastly, AMD finally joins Intel with support for the AVX-512 instruction set.

Model	Cores / Threads	Base / Boost Clock	Default TDP	Price (USD)*
Epyc 9654	96 / 192	2.40 / 3.70 GHz	360W	$11,805
Epyc 9654P	96 / 192	2.40 / 3.70 GHz	360W	$10,625
Epyc 9634	84 / 168	2.25 / 3.70 GHz	290W	$10,304
Epyc 9554	64 / 128	3.10 / 3.75 GHz	360W	$9,087
Epyc 9554P	64 / 128	3.10 / 3.75 GHz	360W	$7,104
Epyc 9534	64 / 128	2.45 / 3.70 GHz	280W	$8,803

*All prices are for orders of 1000 units.

AMD announced 18 models in total (tabulated above and below). They span from 16 cores to 96 and have suffixes that denote their type: F, for fast and inefficient; P, for single-socket only; and no suffix, for normal and dual-socket. AMD shared far more detailed specs than we could fit here, things like cache capacities and configurable TDPs, so if you're interested, start with AMD's data sheet and then check out their documentation page for Genoa.

Model	Cores / Threads	Base / Boost Clock	Default TDP	Price (USD)*
Epyc 9474F	48 / 96	3.60 / 4.10 GHz	360W	$6,780
Epyc 9454	48 / 96	2.75 / 3.80 GHz	290W	$5,225
Epyc 9454P	48 / 96	2.75 / 3.80 GHz	290W	$4,598
Epyc 9374F	32 / 64	3.85 / 4.30 GHz	320W	$4,850
Epyc 9354	32 / 64	3.25 / 3.80 GHz	280W	$3,420
Epyc 9354P	32 / 64	3.25 / 3.80 GHz	280W	$2,730
Epyc 9334	32 / 64	2.70 / 3.90 GHz	210W	$2,990

AMD is claiming that Zen 4 has a ~14% IPC advantage over Zen 3 in server scenarios. It says the uplift is attributable to a doubling of the L2 cache capacity to 1 MB and improvements in the front end, branch prediction, load/store, and the execution engine. Genoa also more than doubles the theoretical memory bandwidth of each socket from 205 GB/s to 461 GB/s.

Added with the slightly higher clock speed and the vastly increased core count of the 9654, the new flagship is 1.9x faster than the previous one, according to AMD, which used the Java-based SPECjbb 2015 tool as a benchmark. Of course, the 9654 costs $11,805, and the 64-core 7763 costs a third less at $7,890, but the Genoa part is still better value.

Model	Cores / Threads	Base / Boost Clock	Default TDP	Price (USD)*
Epyc 9274F	24 / 48	4.05 / 4.30 GHz	320W	$3,060
Epyc 9254	24 / 48	2.90 / 4.14 GHz	200W	$2,299
Epyc 9224	24 / 48	2.50 / 3.70 GHz	200W	$1,825
Epyc 9174F	16 / 32	4.10 / 4.40 GHz	320W	$3,850
Epyc 9124	16 / 32	3.00 / 3.70 GHz	200W	$1,083

If you're not sold on AMD's cherry-picked numbers, Phoronix has a comprehensive launch day review of the 9654 and the 9554. It's worth a read, but the bottom line says that the new Epyc parts come out on top in every multi-core benchmark and land amidst the Intel Xeon parts in light single-threaded workloads. Genoa's flagships just "more" in every way: more performance, more power consumption, and more expensive. But they're so fast that they're still more efficient and better value than the competition.
