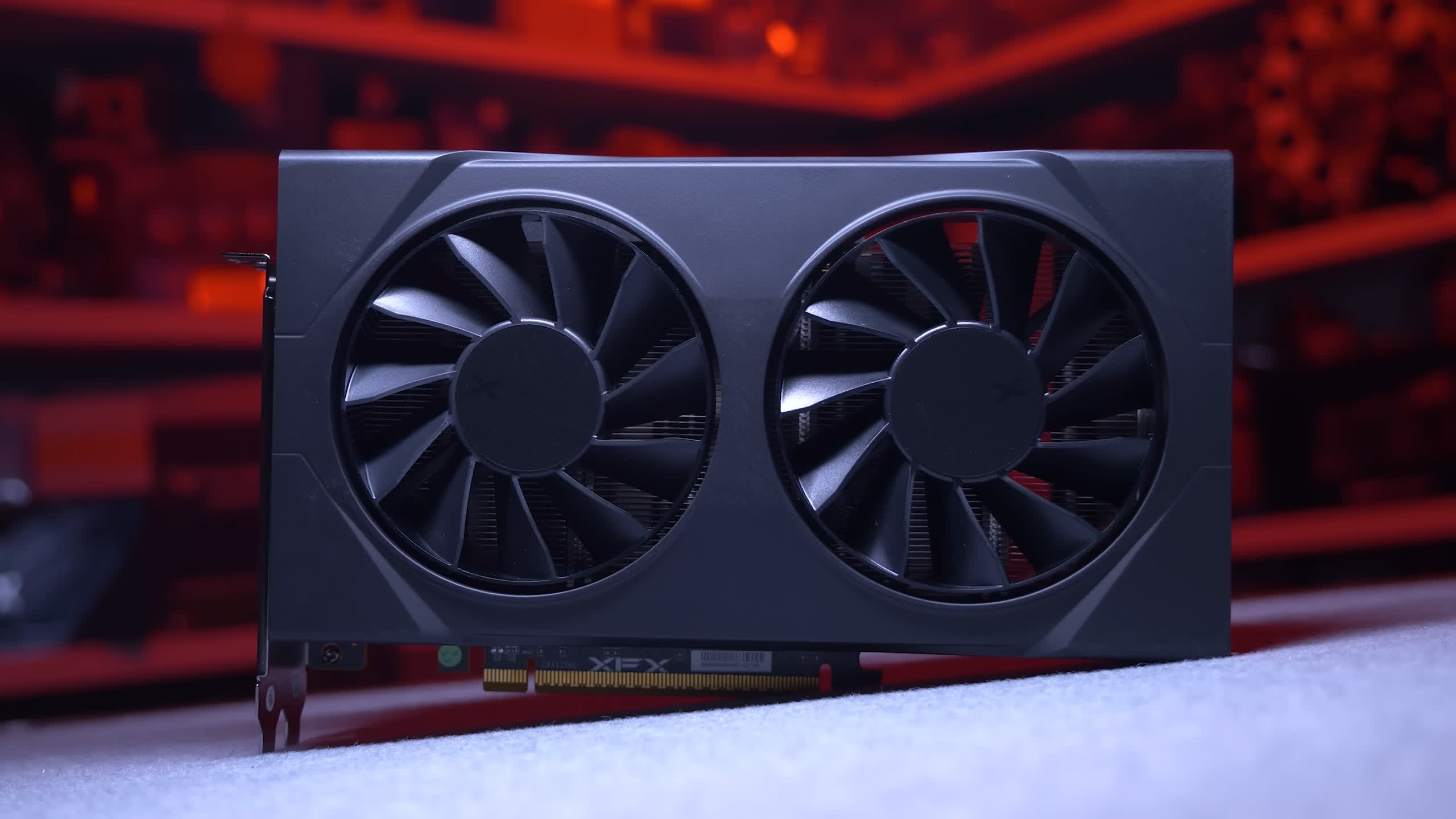

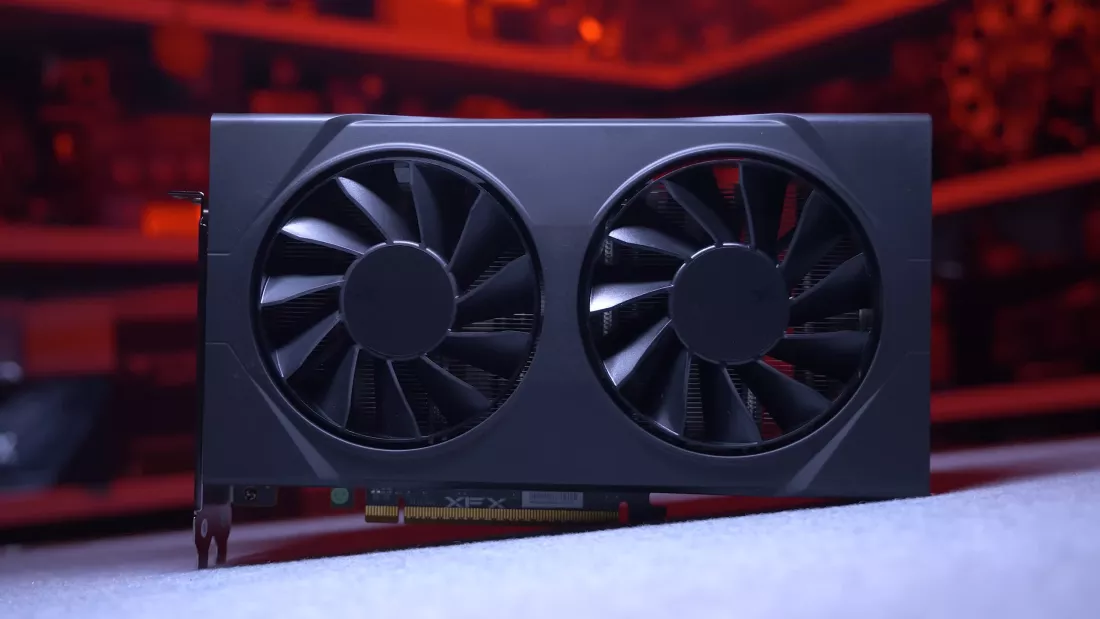

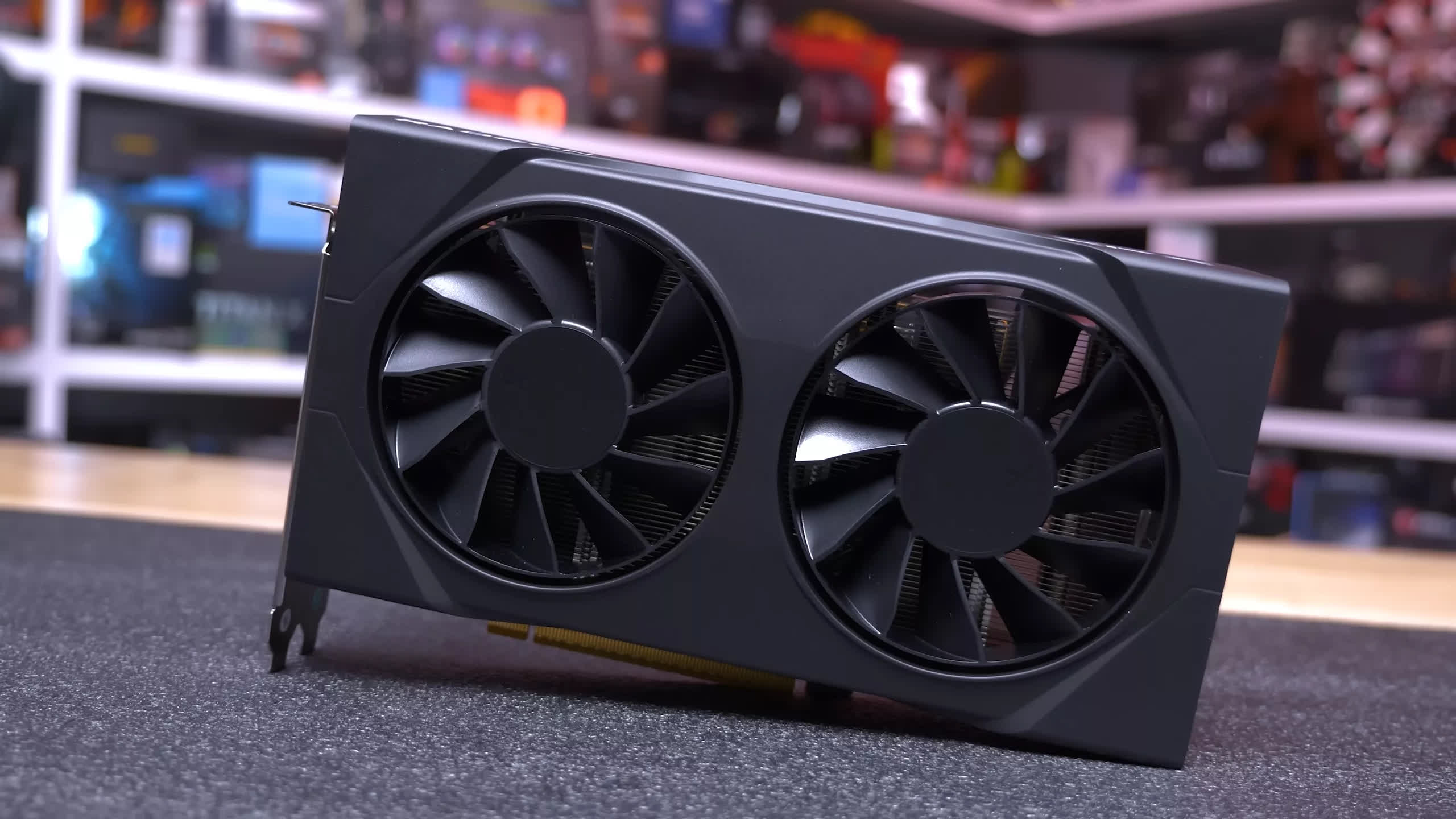

AMD Radeon RX 9060
The Radeon RX 9060 is ~13 to 14% slower than the 9060 XT 8GB model and it should cost around 15% less, resulting in a similar cost per frame. You simply need to ensure you are truly getting a discount and not paying XT pricing for the non XT version, which can be difficult to guarantee with pre-built systems.
– As reviewed by TechSpot on Nov 2025
RDNA 4
Architecture
Entry-level
Product Tier
1792
Shader Cores
64
ROPs
112
TMUs
28
RT Cores
8 GB
Memory
GDDR6
Memory Type
322 GB/s
Bandwidth
132 W
TDP
| GPU Snapshot | |||
| Release date: | Aug 5, 2025 | Type: | Desktop |
| Architecture: | RDNA 4 | Generation: | RX 9000 series |
| Product Tier: | Entry-level | VRAM Capacity: | 8 GB |
| Total Board Power: | 132 W | ||
| Core Configuration | |||
| Shader Cores: | 1792 | TMUs: | 112 |
| ROPs: | 64 | L2 Cache: | 4 MB |
| L3 Cache: | 32 MB | ||
| Memory | |||
| VRAM Capacity: | 8 GB | Memory Type: | GDDR6 |
| Memory Speed: | 20 Gbps | Memory Bus: | 128-bit |
| Bandwidth: | 322 GB/s | ||
| Graphics Processing | |||
| Base Clock: | 1.7 GHz | Game Clock: | 2.4 GHz |
| Boost Clock: | 2.99 GHz | FP32 Throughput: | 21.43 TFLOPs |
| Ray Tracing: | Yes | Ray Tracing Cores: | 28 |
| Process Size: | 4nm | Process Name: | TSMC N4P |
| Die Size: | 199 mm² | ||
| Power & Connectivity | |||
| Total Board Power: | 132 W | Power Connectors: | 1x 8-pin |
| Bus Interface: | PCIe 5.0 x16 | HDMI Support: | HDMI 2.1b |
| DisplayPort Support: | DP 2.1a | DSC: | 1.2a |
| Max Displays: | 4 | ||
| Media & Software Support | |||
| DirectX Support: | 12 Ultimate | Shader Model: | 6.8 |
| Vulkan Version: | 1.4 | OpenGL Version: | 4.6 |
The Radeon RX 9060 is ~13 to 14% slower than the 9060 XT 8GB model and it should cost around 15% less, resulting in a similar cost per frame. You simply need to ensure you are truly getting a discount and not paying XT pricing for the non XT version, which can be difficult to guarantee with pre-built systems.
