Apple patent shows landscape-orientated iPad with notch

midian182

Posts: 5,682   +43
Staff member

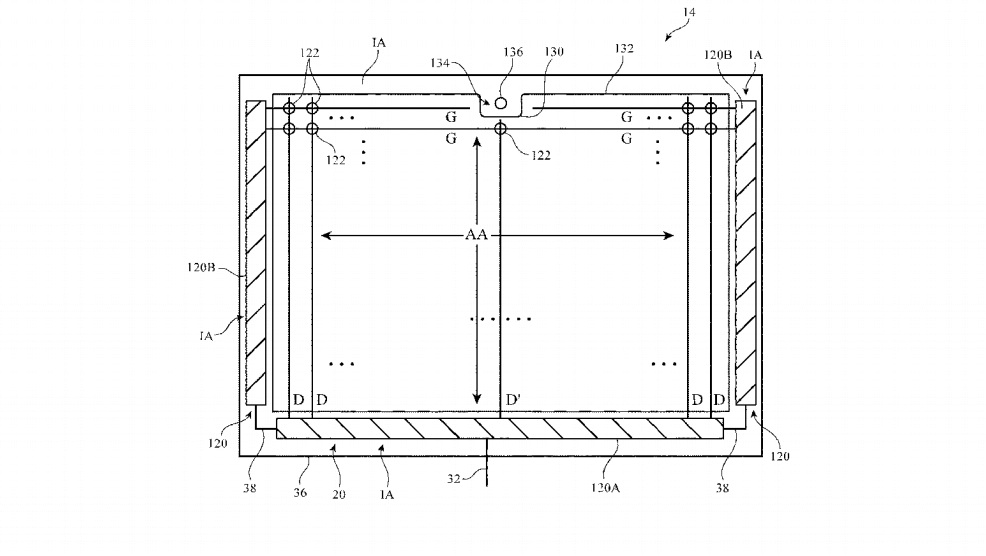

The patent, which was filed in August 2016 and spotted by Patently Apple, was recently published by the USPTO. It shows an “Electronic device display with extended active area.” As you can see, the iPad has been designed with landscape use in mind, placing the front-facing camera in a horizontal bezel.

Apple writes that “The inactive area may have a layer of black ink or other masking material to block internal components from view. The active area may have an opening or notch that contains an isolated inactive area region (hidden in bezel) or may contain a notch or other recess into which a portion of the inactive area protrudes.”

With Apple still pushing the iPad as a laptop replacement, moving the company logo and camera from a portrait to landscape orientation does make sense, especially with the upcoming new Magic Keyboard making landscape mode the better option for users.

The change also means people won’t accidentally cover the camera with their hand when holding an iPad in landscape, which can be especially annoying when using Face ID to unlock the device.

Adding a notch, however, isn’t likely to be met with universal appreciation. While it was the now-defunct Essential that first used a cutout on its handset, the notch became popular with phone makers—less so among consumers—after it appeared in the iPhone X. But as with all patents, there's no guarantee this will become an actual product.

Permalink to story.



p51d007

Posts: 2,374   +1,631
OMG! A notch! How distasteful! It will ruin the sleek sexy design, we can't have that! LOL


Lew Zealand

Posts: 1,310   +1,262
TechSpot Elite
Is this a little like Apple giving up? Is this their way of accepting that a native-landscape device (read: laptop) is a superior form factor for getting actual work done, as compared to a big handheld which is a primary content consumption device?

Don't make a touchscreen MacBook with macOS but instead make a touchscreen iPad with iOS but functionally the same form factor. Maybe it's not even giving up but a realization that one OS was purpose-built for a mouse and the other OS was purpose-built for a finger, though a similar hardware form factor works well for both. As opposed to forcing the two different interactions together in one OS like Windows tries to do.

Or it's just a patent to annoy other companies with.
