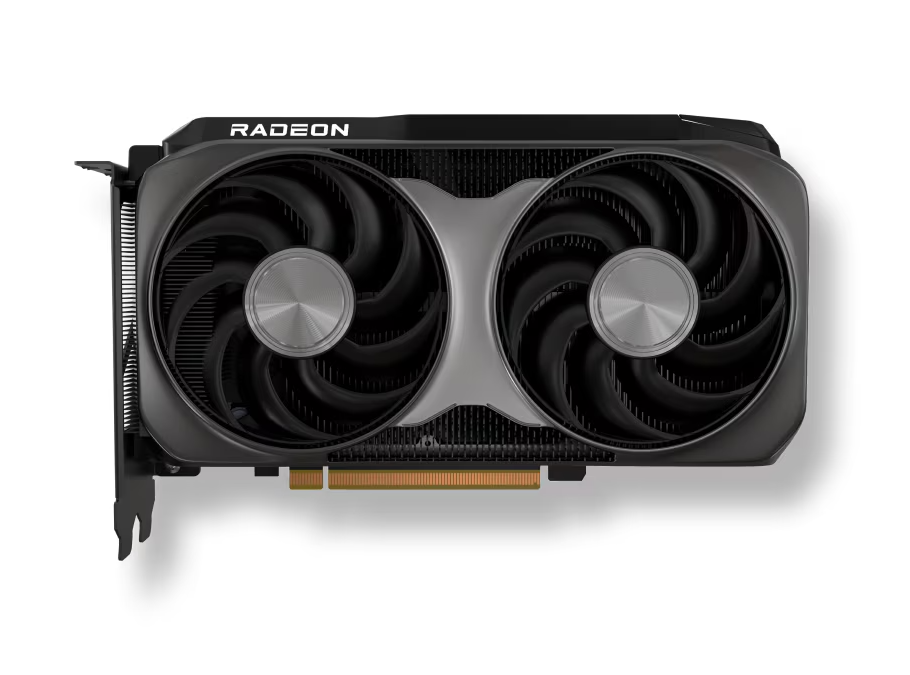

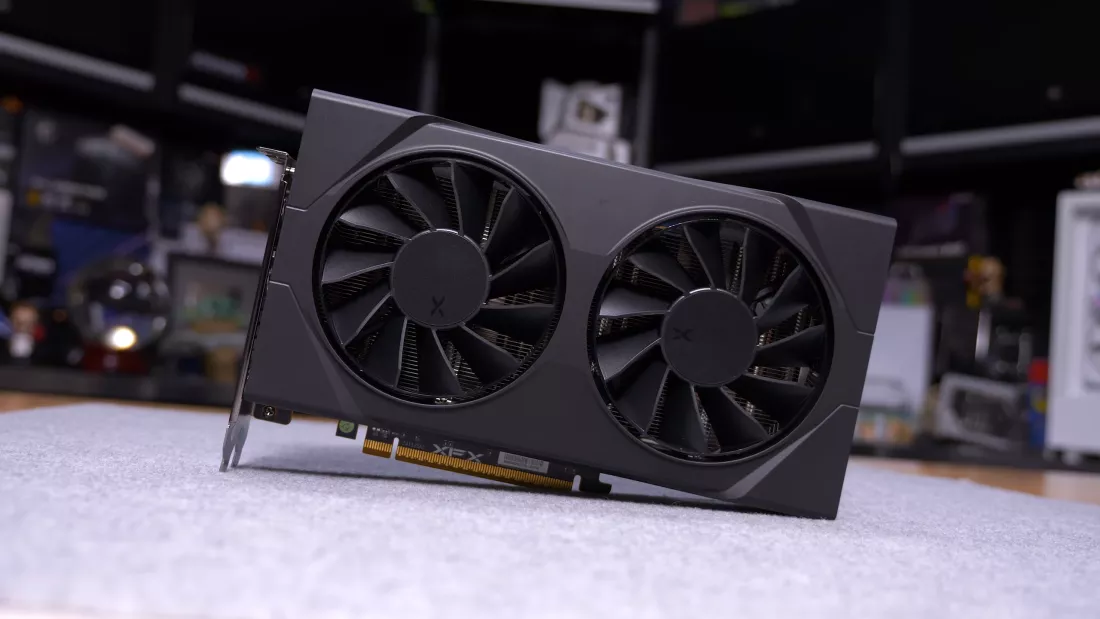

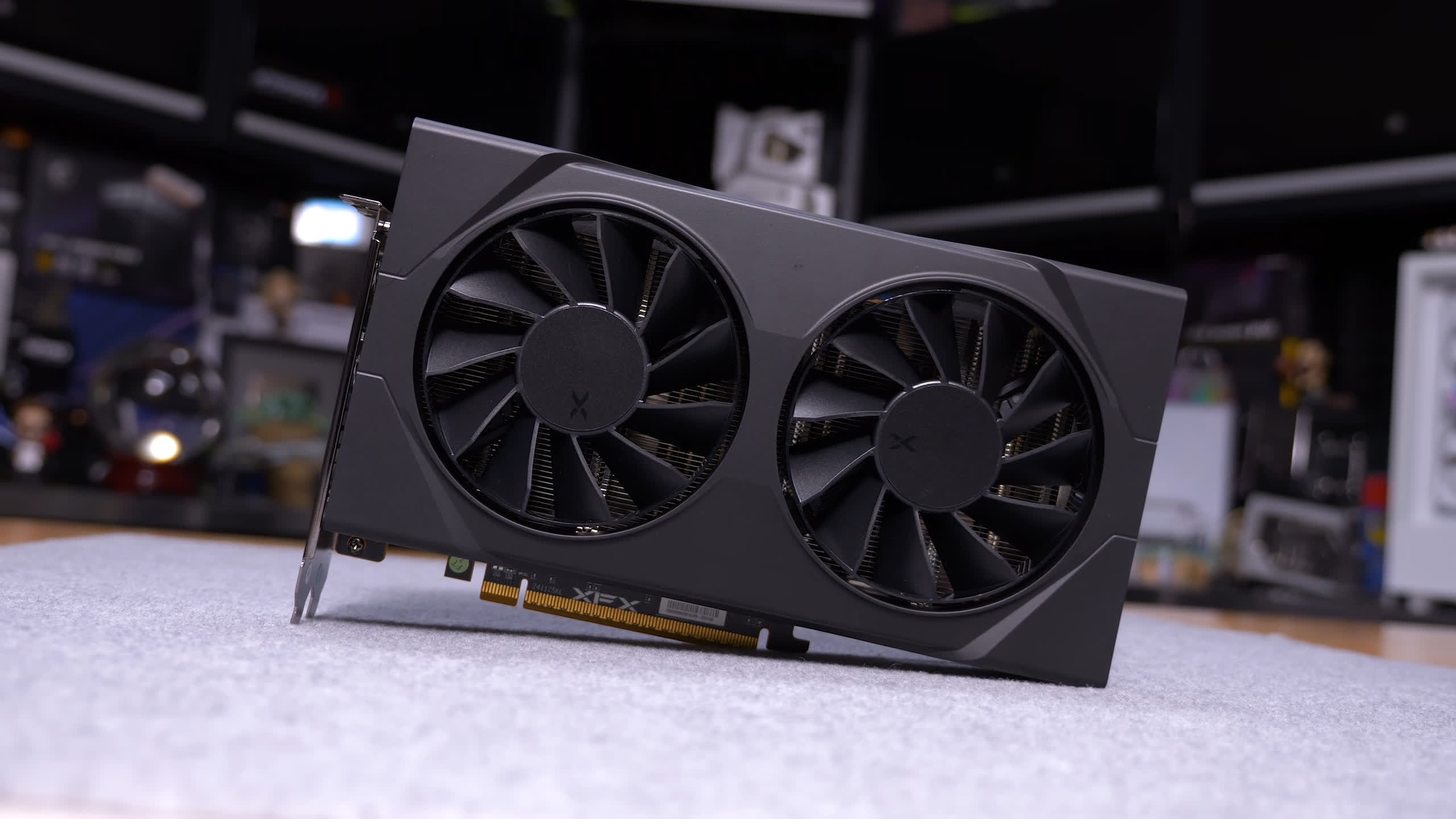

AMD Radeon RX 9050 4GB
RDNA 4
Architecture
Entry-level
Product Tier
1024
Shader Cores
64
ROPs
64
TMUs
16
RT Cores
4 GB
Memory
GDDR6
Memory Type
144 GB/s
Bandwidth
92 W
TDP
| GPU Snapshot | |||
| Release date: | Jul 28, 2026 | Type: | Desktop |
| Architecture: | RDNA 4 | Generation: | RX 9000 series |
| Product Tier: | Entry-level | VRAM Capacity: | 4 GB |
| Total Board Power: | 92 W | ||
| Core Configuration | |||
| Shader Cores: | 1024 | TMUs: | 64 |
| ROPs: | 64 | L2 Cache: | 2 MB |
| L3 Cache: | 16 MB | ||
| Memory | |||
| VRAM Capacity: | 4 GB | Memory Type: | GDDR6 |
| Memory Speed: | 18 Gbps | Memory Bus: | 64-bit |
| Bandwidth: | 144 GB/s | ||
| Graphics Processing | |||
| Base Clock: | 1.33 GHz | Game Clock: | 1.92 GHz |
| Boost Clock: | 2.6 GHz | FP32 Throughput: | 10.65 TFLOPs |
| Ray Tracing: | Yes | Ray Tracing Cores: | 16 |
| Process Size: | 4 nm | Process Name: | TSMC N4P |
| Die Size: | 199 mm² | ||
| Power & Connectivity | |||
| Total Board Power: | 92 W | Power Connectors: | 1x 8-pin |
| Bus Interface: | PCIe 5.0 x16 | HDMI Support: | HDMI 2.1b |
| DisplayPort Support: | DP 2.1a | DSC: | Yes |
| Max Displays: | 3 | ||
| Media & Software Support | |||
| DirectX Support: | 12 Ultimate | Shader Model: | 6.9 |
| Vulkan Version: | 1.4 | OpenGL Version: | 4.6 |
