A microscope reveals the ghost of analog video hidden inside a LaserDisc

[Skye Jacobs]

The big picture: When retro tech obsessive Shelby Jueden pointed a low-cost digital microscope at a decades-old LaserDisc, he didn't just see reflections of light – he uncovered the physical trace of analog video itself. His experiment shows how the LaserDisc's 1970s-era analog encoding can still reveal faint traces of recorded video, illustrating how optical media once stored motion pictures before digital formats arrived.

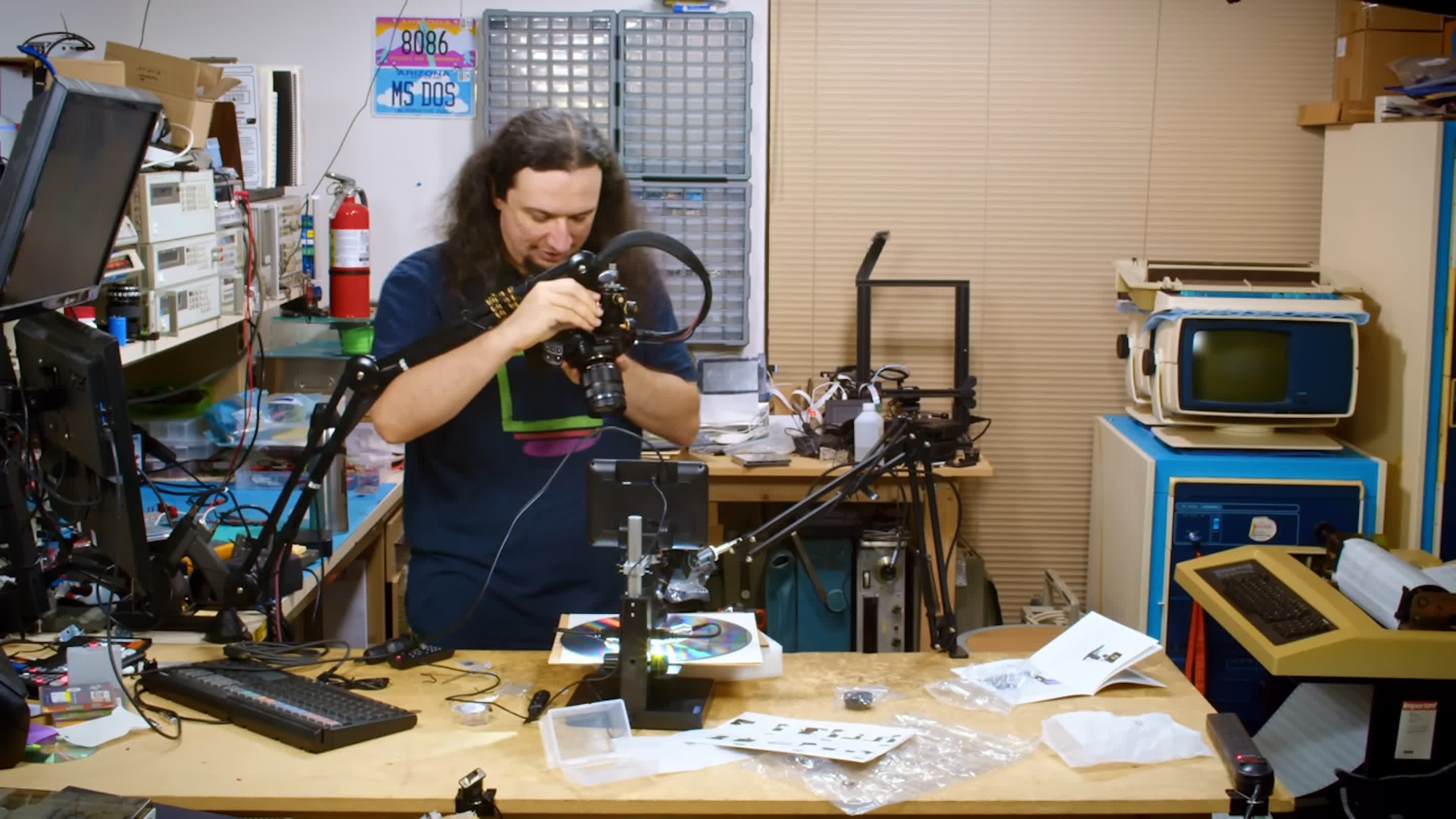

Jueden's experiment began by accident. While using a low-cost digital microscope to inspect electronics, he turned it toward a LaserDisc out of curiosity. Under magnification, faint but recognizable images began to emerge – proof that LaserDisc's analog encoding could still be decoded visually without a player, just by analyzing the pits on its surface.

That's something modern optical media can't replicate. When Jueden tried the same with a compact disc, the microscope revealed only a dense and meaningless landscape of uniform structures. The difference lies in the data architecture: CDs store digital bits, while LaserDiscs preserve continuous analog waveforms. It stores information not as binary data but through the timing of tiny pits etched into an aluminum layer, which scatter light to recreate the original video signal.

Introduced in the late 1970s, LaserDisc aimed to deliver higher-quality video in a premium format. Each 30-centimeter disc side stored a full analog signal similar to broadcast TV, with brightness, color, and sync encoded in varying pit lengths. The player's laser read those pits at a constant speed, converting light reflections into electrical signals that composite decoders turned into moving images.

Jueden's microscope bypassed decades of playback tech by zooming in close enough to make the signal visible.

Since LaserDisc data is stored as continuous analog modulation, vertical motion, such as film credits, can leave readable traces. In his test, the True Grit end credits appeared clearly under the microscope, revealing how physical the analog medium really is.

This method can't recreate full frames, color, or sound, but it highlights the elegance of analog storage. Unlike digital media that depend on binary decoding, LaserDisc encodes video as direct variations of light and timing. Under the microscope, those pits reveal the physical geometry of the signal – a microscopic record of entertainment history etched in metal.

By contrast, modern optical discs such as DVDs and Blu-rays use digitally compressed video formats like MPEG-2 or H.264, which are encoded with complex error-correction and compression algorithms.

What appears to the microscope as uniform chaos is actually a compressed and encrypted digital stream – efficient but invisible to the human eye. That opacity is one reason why formats like LaserDisc still fascinate engineers and collectors: they render video in a way that can, quite literally, be seen.
