Test System & Memory Performance

AMD APU System Specs
  • AMD A10-7800 (3.5GHz - 3.90GHz)
  • AMD A8-7600 (3.1GHz - 3.80GHz)
  • Asrock FM2A88M Extreme4+ (AMD A88X)
  • 8GB (2x4GB) DDR3 RAM
  • Crucial MX200 1TB
  • SilverStone Essential Series 500w
  • Windows 10 Pro 64-bit
AMD AM1 System Specs
  • AMD Athlon 5350 (2.05GHz)
  • Asrock AM1H-ITX
  • 8GB (2x4GB) DDR3 RAM
  • Crucial MX200 1TB
  • SilverStone Essential Series 500w
  • Windows 10 Pro 64-bit
Intel Haswell System Specs
  • Intel Core i3-4130 (3.4GHz)
  • Intel Pentium G3220 (3.0GHz)
  • Asrock Z97 Extreme9 (Intel Z97)
  • 8GB (2x4GB) DDR3-2400 RAM
  • Crucial MX200 1TB
  • SilverStone Essential Series 500w
  • Windows 10 Pro 64-bit
Asrock Beebox System Specs
  • Intel Celeron N3000 (1.60GHz - 2.40GHz)
  • 4GB (2x2GB) DDR3 RAM
  • Team Group M3F49 128GB SSD
  • 36W/12V Adapter
  • Windows 10 Pro 64-bit
Intel Braswell System Specs
  • Intel Pentium N3700 (1.60GHz - 2.40GHz)
  • Asrock N3700-ITX
  • Intel Celeron N3050 (1.60GHz - 2.16GHz)
  • Asrock N3050B-ITX
  • 8GB (2x4GB) DDR3 RAM
  • Crucial MX200 1TB
  • SilverStone Essential Series 500w
  • Windows 10 Pro 64-bit
ECS Liva X System Specs
  • Intel Celeron N2808 (1.58GHz)
  • 4GB (1x4GB) DDR3 RAM
  • 32GB eMMC SSD
  • 36W/12V Adapter
  • Windows 10 Pro 64-bit
MSI Cubi 2 Plus System Specs
  • Intel Core i3-6100T (3.20GHz)
  • 8GB (2x4GB) DDR4-2133 RAM
  • Samsung SM951 120GB
  • 90W/12V Adapter
  • Windows 10 Pro 64-bit

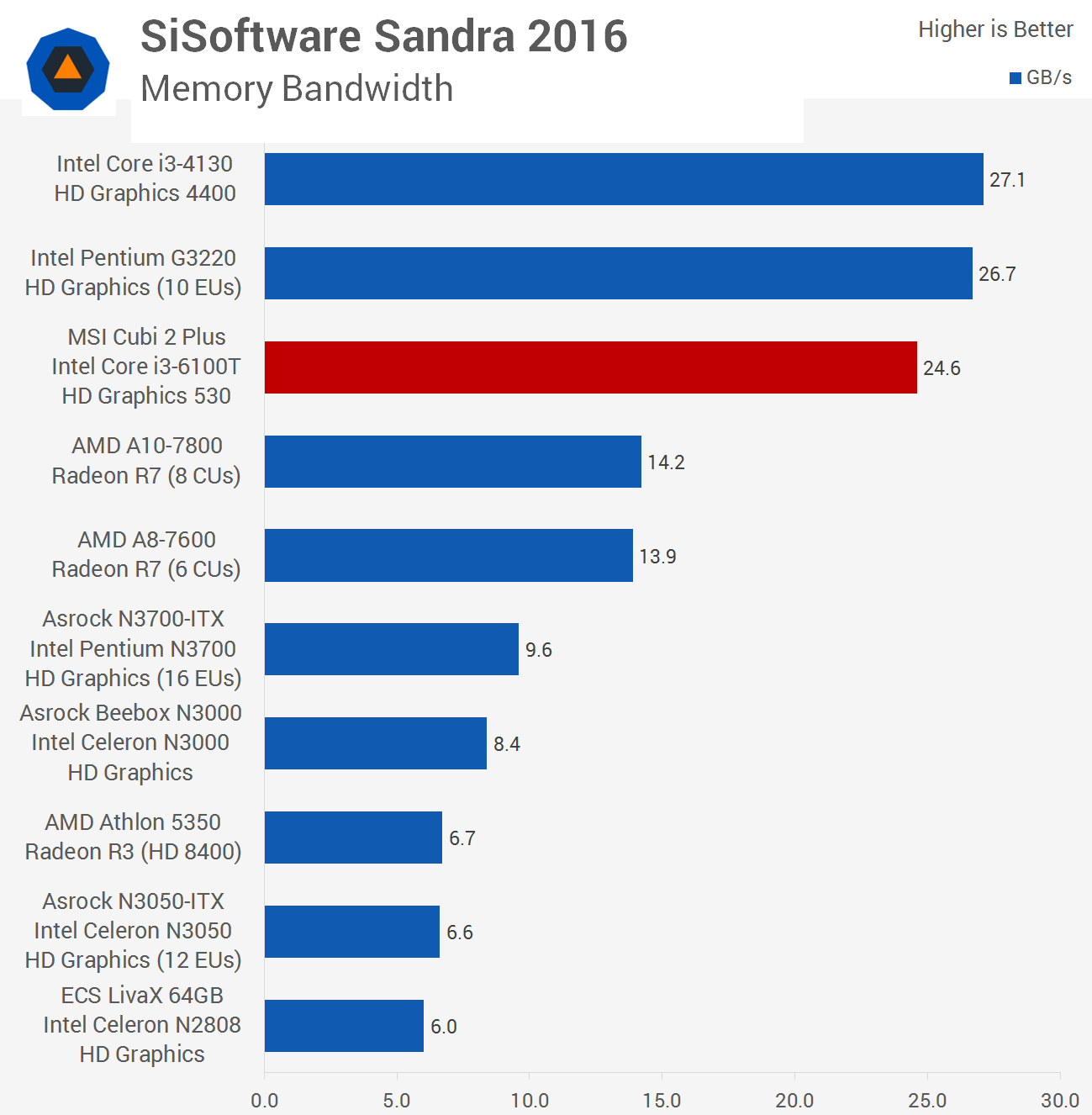

The two DDR4-2133 modules we installed in the MSI Cubi 2 Plus allowed for a memory bandwidth of 24.6GB/s when combined with the Core i3-6100T processor. This is similar to the Haswell G3220 and i3-4130 parts using slightly higher clocked DDR3 memory.

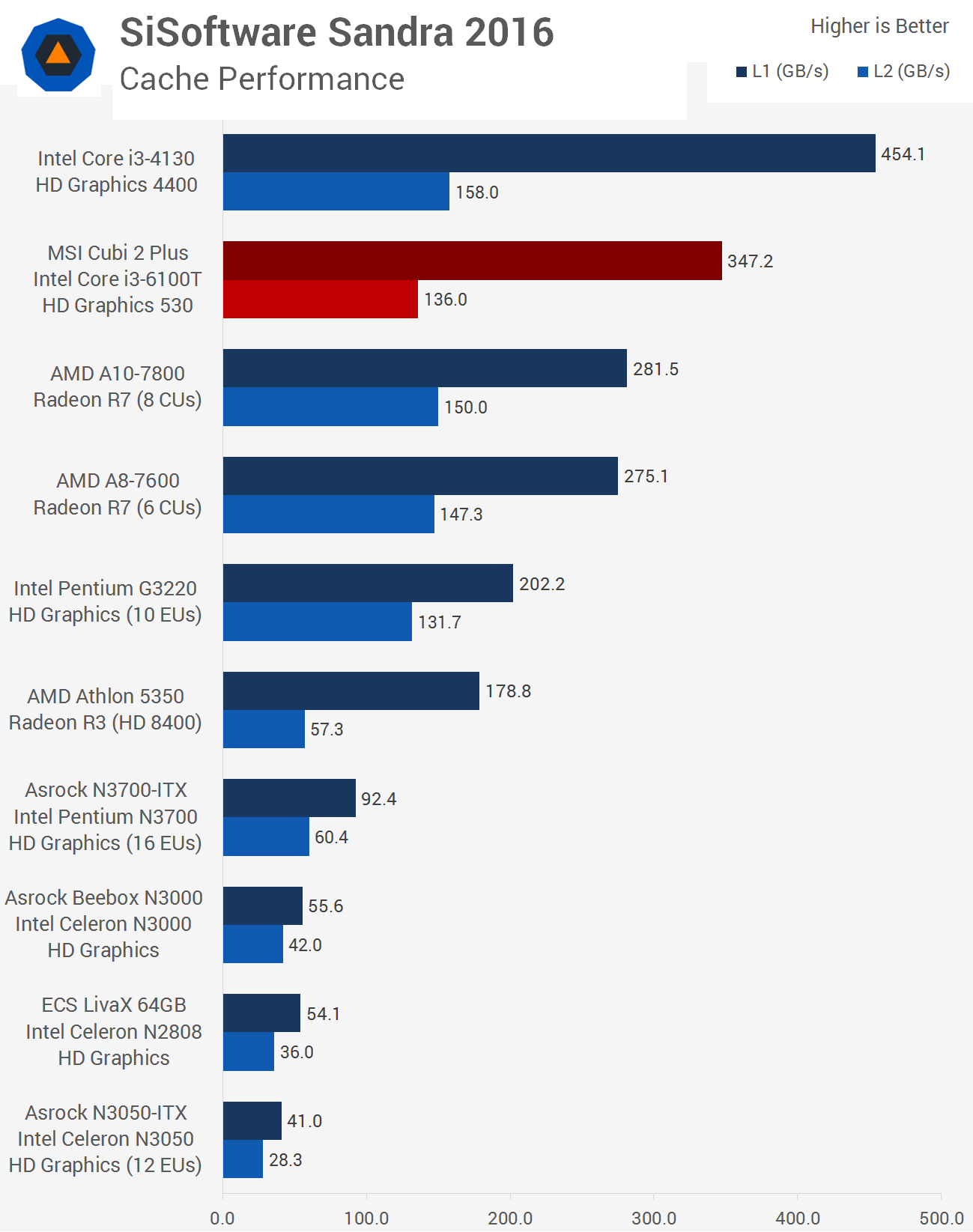

The Core i3-6100T processor of the Cubi 2 Plus delivered much weaker L1 cache performance compared to the previous generation Core i3-4130. Perhaps this in part can be attributed to the slight drop in operating frequency.
