The command line, object snaps, layers, dimensions, hatches, blocks and drawings you already know. Fast, native, and built for both people and AI agents.
Features

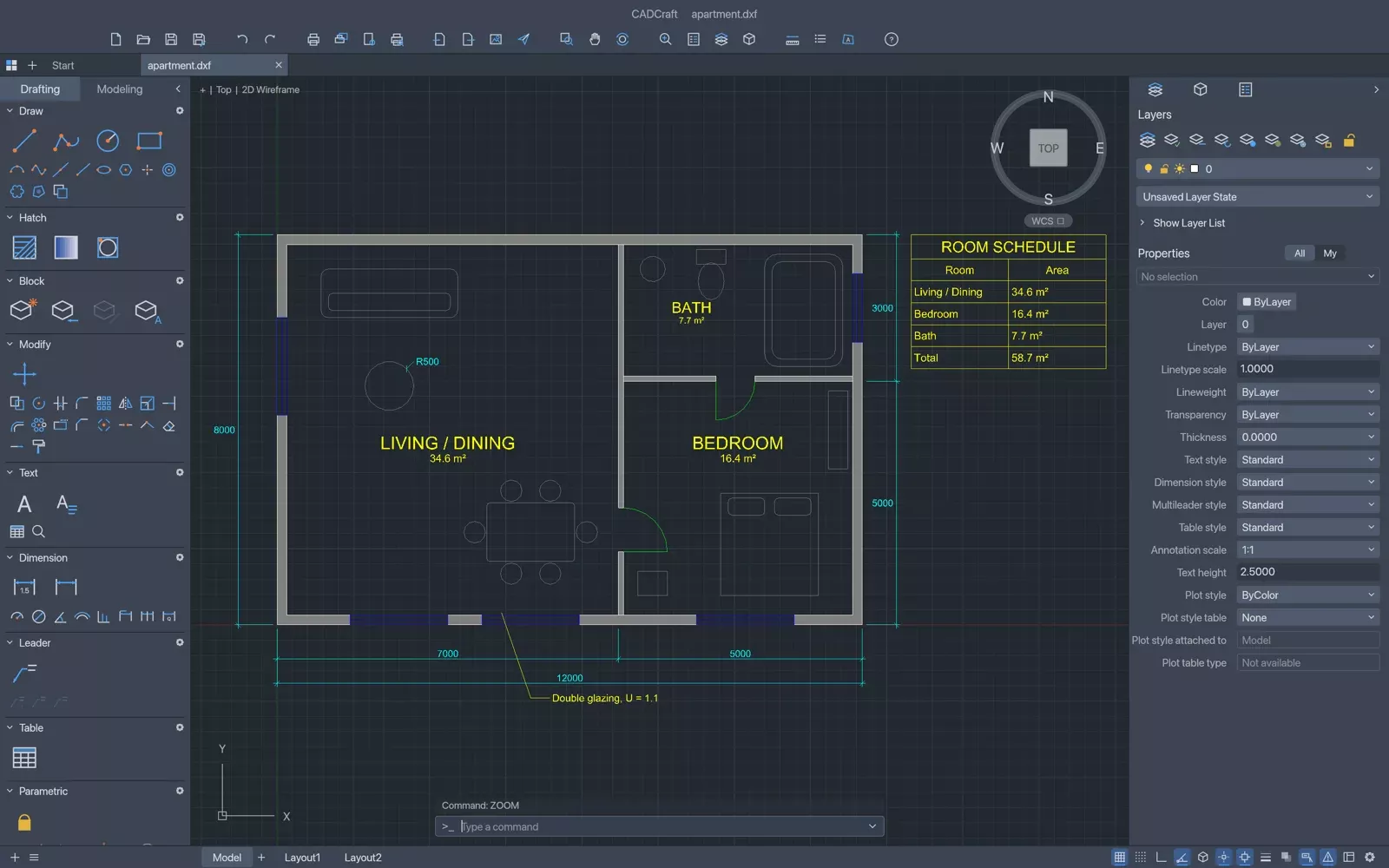

The drafting workflow
Type commands, click points, direct distance entry, object snaps, polar tracking, ortho, grips, and right-click-to-repeat.
Open drawing formats
Reads and writes DXF (ASCII and binary, R12 – 2018), opens DWG (R13 – 2018), and exports to PDF, SVG, and PNG.
Paper space & viewports
Layout sheets with floating viewports, per-viewport layer overrides, page setups, and scale-exact plotting.
Associative annotations
Linear, aligned, angular and radial dimensions that follow geometry, multileaders, tables, and custom drafting fonts.
Hatching & block libraries
Pick-point boundary hatching with islands, pattern fills, block definitions with attributes, and nested blocks.
Parametric constraints
Geometric and dimensional constraints with expression parameters that automatically re-solve as you edit.
